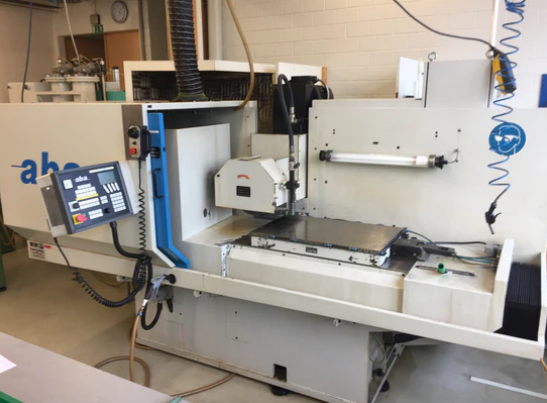

ABA EL 806

Table Length: 800 mm
Table Width: 500 mm
Grinding Length: 800 mm
Grinding Width: 600 mm
Grinding Height: 500 mm
Table Load Max.: 800 kg
Longitudinal Travel (X-axis): 1100 mm
Transversal Travel (Y-axis): 600 mm
Vertical Travel (Z-axis): 530 mm
Automatic Cross-Feed Stepless: 0–5 m/min
Table Speeds Stepless: 2–35 m/min
Automatic Vertical Feed: 1–3000 mm/min (Resolution 0.001 mm)
Grinding Wheel Diameter: 400 mm
Grinding Wheel Width: 100 mm
Wheel Bore Diameter: 127 mm
Grinding Wheel Speeds Stepless: 1000–2600 RPM
Voltage: 3x380 V 50 Hz
Grinding Spindle Motor: 11 kW
Machine Weight: 5400 kg
Overall Dimensions L x W x H: 3400 x 2860 x 2600 mm
Diamond Dressing Device on Table
Lamp
Set of Grinding Wheels
Electronic Handwheel
