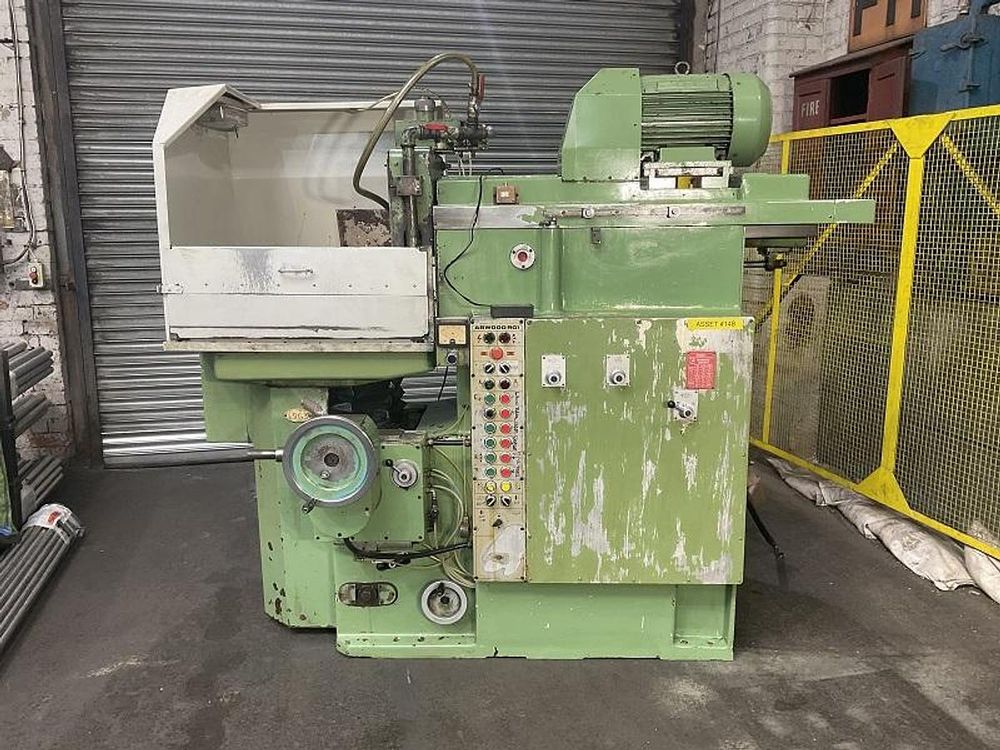

Abwood RG1-24

Magnetic chuck diameter: 600 mm
Maximum height between wheel and chuck: 184 mm
Table angular adjustment: ±1.5°
Grinding wheel size: 355 x 50 x 127 mm
Chuck rotation speed: 10 – 160 rpm
Automatic vertical feed: 0.02 – 0.5 mm
Wheelhead traverse speed: 0.3 – 3 m/min
Grinding spindle motor: 7.46 kW
Hydraulic pump motor: 5.5 kW
Machine weight: 4250 kg
Machine size: 2600 x 1300 mm
Increased workpiece height
Electromagnetic chuck
Overhead diamond wheel dresser
Dual dials
Electronic spark-out control
Coolant
