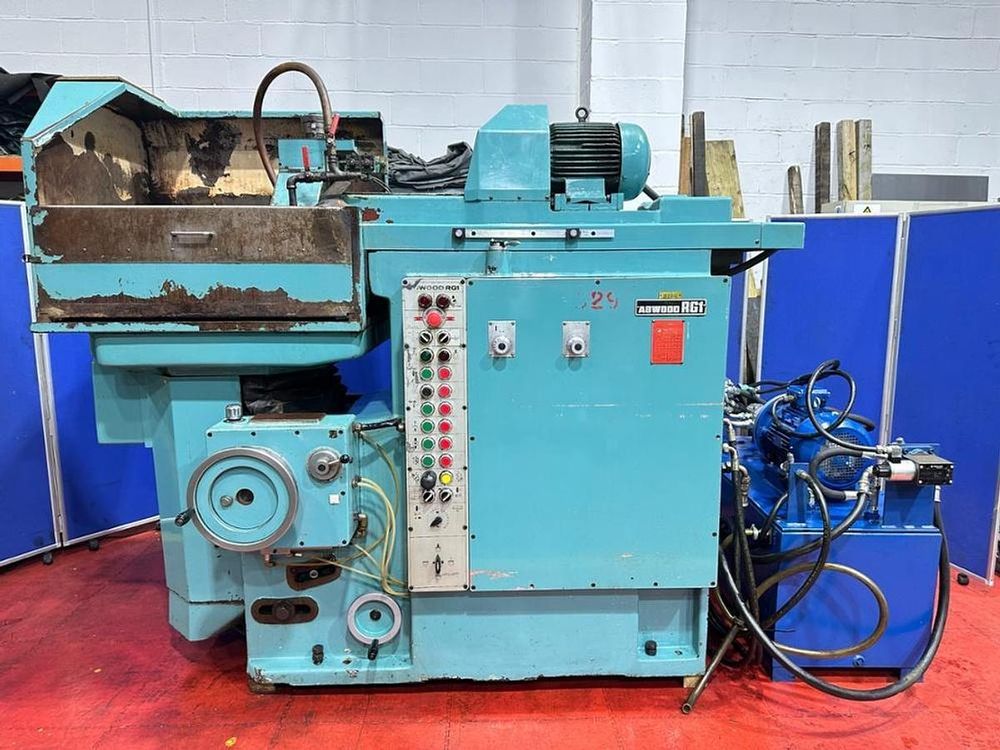

Abwood RG1-24

Table Size: 600 x 150 mm
Magnetic Chuck Diameter: 600 mm
Max Height Under Wheel: 150 mm
Table Angular Adjustment: ±1.5°
Grinding Wheel Size: 355 x 50 x 127 mm
Chuck Rotation Speed: 10 – 160 rpm
Automatic Vertical Feed: 0.02 – 0.5 mm
Wheelhead Traverse Speed: 0.3 – 3 m/min
Grinding Wheel Motor: 7.46 kW
Hydraulic Pump Motor: 5.5 kW

Electro-Magnetic Chuck
Overhead Diamond Wheel Dresser
Electronic Spark-Out Control
Dual Dials
Coolant Filtration System

Machine Dimensions: 2600 x 1300 mm
Machine Weight: 4250 kg
