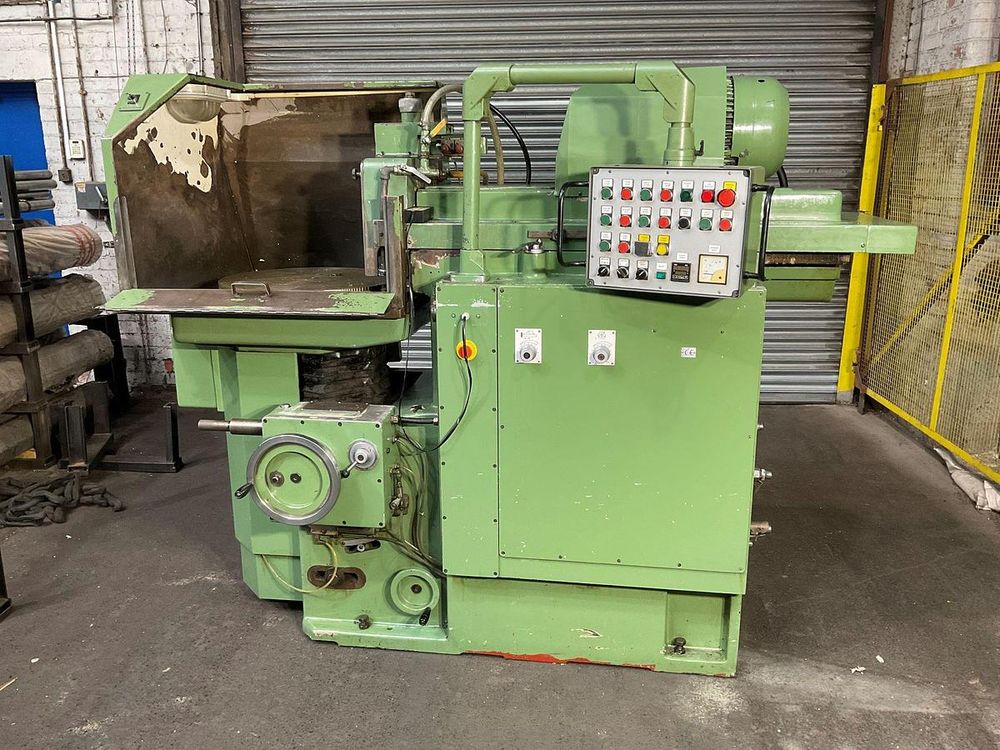

Abwood RG1-24

Nominal size 600 mm x 150 mm
Magnetic chuck diameter 600 mm
Maximum height between grinding wheel and chuck 150 mm
Table angular adjustment ±1.5°
Grinding wheel size 355 mm x 50 mm x 127 mm
Chuck rotation speed 10 to 160 rpm
Automatic vertical feed 0.02 to 0.5 mm
Vertical feed step 0.02 mm
Wheelhead traverse speed 0.3 to 3 m/min
Grinding wheel spindle motor 7.46 kW
Hydraulic pump 5.5 kW
Machine weight 4250 kg
Machine dimensions 2600 mm x 1300 mm

600 mm electro-magnetic chuck
Overhead diamond wheel dresser
Coolant
