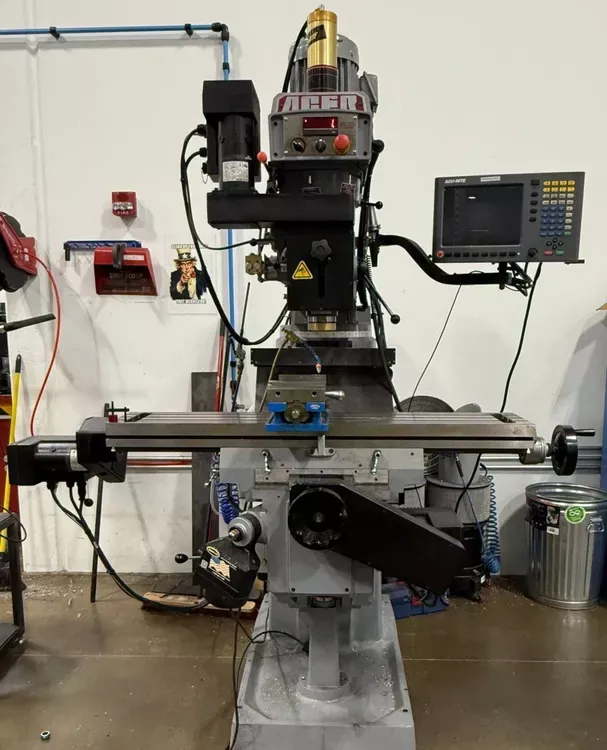

Acer 5VK CNC Vertical 4,500 RPM

X-axis travel: 34″
Y-axis travel: 12″
Z-axis travel: 16″
Quill travel: 5″
Control: Acu-Rite MillPWR G2 CNC 3-axis
Spindle speed: 60 – 4,500 RPM
Spindle motor: 5 HP
Spindle taper: NST#40
Table size: 10″ x 50″
Max table load: 850 lbs
Ball screws: 1″ diameter
Weight: 3,050 lbs
Dimensions: 96″ x 62″ x 89″ H
Turcite-B coated slideways and gibs
Precision ABEC-7 spindle bearings
Meehanite casting
Hardened & ground ways
Dual knee, table & saddle locks
Power drawbar assembly & safety ring
Servo-brand knee power feed
Kurt vise
Single phase or 3 phase compatible
HRC 52 hardened and ground table
Automotive paint
G-code and conversational programming
3-axis precision ball screws
Auto lube system
3-axis digital readout system (table, saddle, quill)
Turnkey CNC system with software and hardware
ABS/INC, polar/cartesian, inch/metric modes
Program size: up to 9,999 steps
Custom pockets, repeat, rotate, mirror image
Run modes: single step, dry run, graphics only, manual positioning
Geometry and trig calculator functions
Operator console with 10″ color LCD
Remote stop/go switch
Controller cabinet with Intel Celeron 1 GHz CPU
USB and RS232 interface
3D graphics display
115VAC – 20 amps
40 taper probe included
