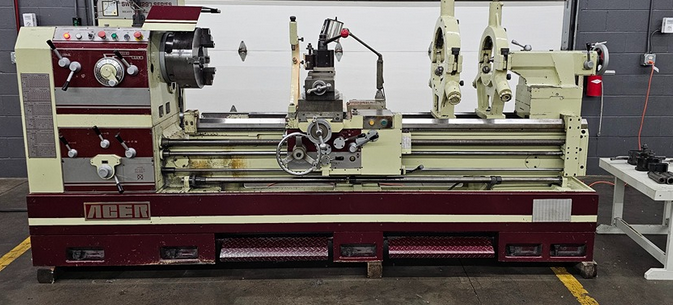

Acer Engine Lathe 1200 RPM Dynamic 2980G

ACER Dynamic 2980G
Year: 2012

Swing over bed: 29-1/8″
Swing over gap: 37-25/32″
Swing over cross slide: 20-1/2″
Center distance: 80″
Spindle nose: D1-11
Spindle bore: 4-1/8″
Center taper: MT #5
Spindle speed: 25–1200 RPM (12 steps)
Cross slide travel: 18-1/4″
Compound rest travel: 9″
Spindle diameter: 3-1/32″
Spindle travel: 7″
Tailstock taper: MT #5
Bed length: 122″
Bed width: 16-1/2″
Gap width: 20-1/4″
Thread pitch (metric): 0.5–14 mm, 31 kinds
Thread pitch (inch): 2–56 TPI, 45 kinds
Thread pitch (module): 0.25–7 M.P., 23 kinds
Thread pitch (DP): 4–112 D.P., 43 kinds
Longitudinal feed: 0.0012″–0.0287″/rev
Cross feed: 0.0004″–0.0118″/rev
Main motor: 15 HP
Rapid traverse motor: 1/2 HP
Coolant pump motor: 1/8 HP
Floor dimensions: 129″ x 50″ x 66″
Weight: 10,000 lbs
Voltage: 460V 3-phase

Newall 2 Axis DRO
15″ 3-jaw chuck
11″ steady rest
15″ steady rest
Follow rest
Durian quick change tool post
Several quick change holders
Rapid traverse on carriage
Rapid traverse on cross slide
4.125″ spindle bore
