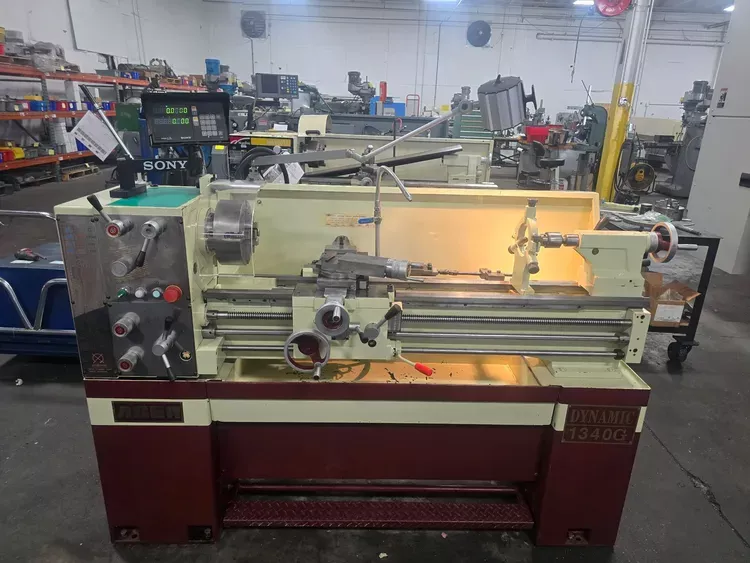

Acer Engine Lathe 2000 RPM (9 steps) DYNAMIC 1340G

ACER DYNAMIC 1340G

Swing over Bed 13"
Swing over Gap 19 1/4"
Distance between Centers 40"
Bed Length 54"
Bed Width 7 1/2"
Width of Gap 7 5/8"

System Inch with Metric Change Gears
Spindle Bore Diameter 1 1/2"
Spindle Nose D1-4
Spindle Speeds 80 - 2,000 RPM (9 steps)
Spindle Motor 3 HP 230V 3 Phase

Precision Taper Roller Bearings Equipped
Hardened and Ground Gears in Headstock
Tailstock Diameter 1 7/16"
Tailstock Taper MT #3
Cross Slide Travel 6 7/8"
Compound Rest Travel 4"
Leadscrew Oil lubricated
Universal two-lever gearbox
Handwheel on left side of carriage
Hardened and ground bed ways
Built-in safety overload friction clutch

Removable chip pan
Foot Brake
Follow Rest
Steady Rest
Sony Digital Read Out
Taper Attachment
8” 4 Jaw Chuck
6” 3 Jaw Chuck
10” Face Plate
