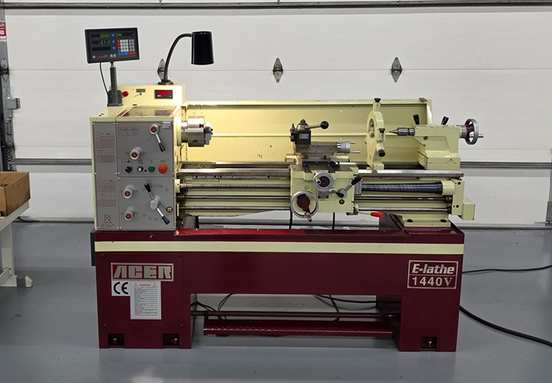

Acer Engine Lathe 2000 RPM (Infinitely Variable) 1440V

Swing Over Bed: 14 in
Swing Over Gap: 20-3/4 in
Swing Over Cross Slide: 8-3/4 in
Distance Between Centers: 40 in
Spindle Bore Diameter: 1-1/2 in
Spindle Speeds: 36–2000 RPM (Infinitely Variable)
Cross Slide Travel: 8 in
Compound Rest Travel: 3.5 in
Tailstock Spindle Diameter: 1-7/16 in
Spindle Travel: 4 in
Bed Length: 54 in
Bed Width: 9 in
Gap Width: 8 in
Leadscrew Pitch: 24, 4 TPI
Metric Thread Range: 0.4–7 mm (32 types)
Inch Thread Range: 4–56 TPI (32 types)
Longitudinal Feed Range: 0.0026–0.0368 in/rev
Cross Feed Range: 0.0008–0.0122 in/rev

Main Motor Power: 3 HP
Coolant Pump Motor: 1/8 HP
Net Weight: 1,540 lb

3-Jaw Chuck
4-Jaw Chuck
Steady Rest
Follow Rest
5C Collet System
5C Collet Spindle Nose with Closer
Inch & Metric Threading System
Change Gears
Newall 2-Axis Digital Readout
Quick Change Tool Post with Tool Holders
Standard Tool Post
Coolant System
Thread Dial
Work Light
Tailstock with Jacobs Chuck and Center
