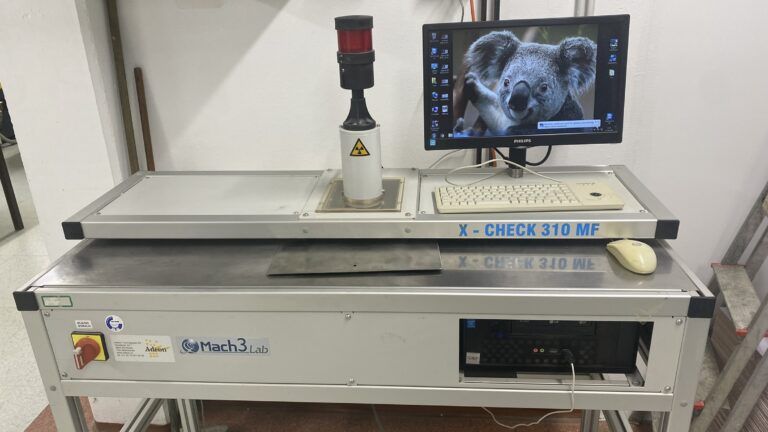

Adoen Mach3Lab X-Check 310-MF

PCB X-Ray Inspection desk for Multi-Layer panels before and after drilling.
Allows to evaluate the centering errors between holes and pads

Micro focus X-Ray source
CCD camera with X-Ray scintillator for noise reduction
Operating system: Windows XP
Year of production: 2015

Tool specification:
Electrical supply voltage: 240V – 50Hz
Electrical power consumption: 600W
Size: 520 x 1240 x 1400 [mm]
Field of view: 12 x 9 [mm] / 6 x 4.5 [mm]

Panel dimensions:
Max. panel dimension: 700 x 600 [mm]
Min. panel dimension: 300 x 200 [mm]
Panel thickness: 0.1 – 6 [mm]
