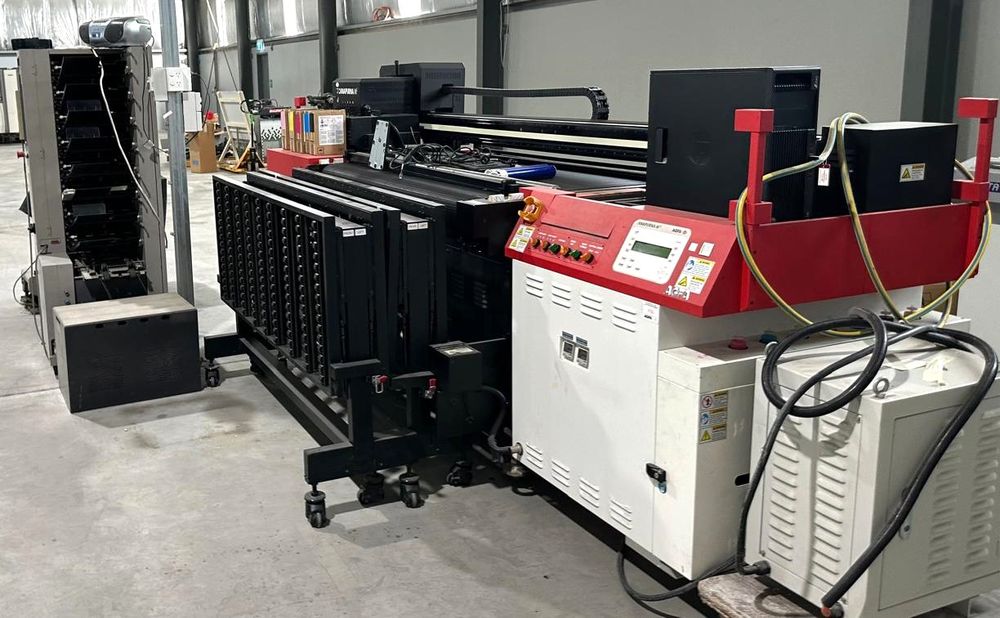

Agfa Anapurna M2 5909 / 600

Anapurna M² is a high-speed UV curable inkjet system
Print output at 23 m²/hr
Anapurna UV inks for faster drying, material versatility and a wider colour gamut.
The 1024 nozzles produce top quality prints at 720 x 1440 dpi on uncoated rigid media, such as corrugated boards,
rigid plastics, exhibition panels, stage graphics and advertising panels, as well as roll media such as film, vinyl and paper, canvas and banners of up to 4,5 cm thick
Automatic vacuum system INKS 6 :Anapurna M2 UV curable inks (CMYK Lc Lm)
HEADS : 6 Konica-Minolta: 1024 nozzles/head with a droplet volume of 12pl (binary)
UV-CURING RIP ENGINE FEATURES
Reinforced beam
Automated Media Positioning bar mounted on table - registration of rigids
Divided vacuum table, 2 parts
1,5kW ring blower for strong vacuum. Situated in the engine for less noise
Accurate Media transport/feed
Powerfull fastcan motor
Automatic control of vacuum strength (inverter based)
Full width ionisation bar to remove electrostatic load on media
Shuttle safety sensors on each side of the carriage
Extended basic frame, to support ring blower
Black coloured media transport belt
Network connection
