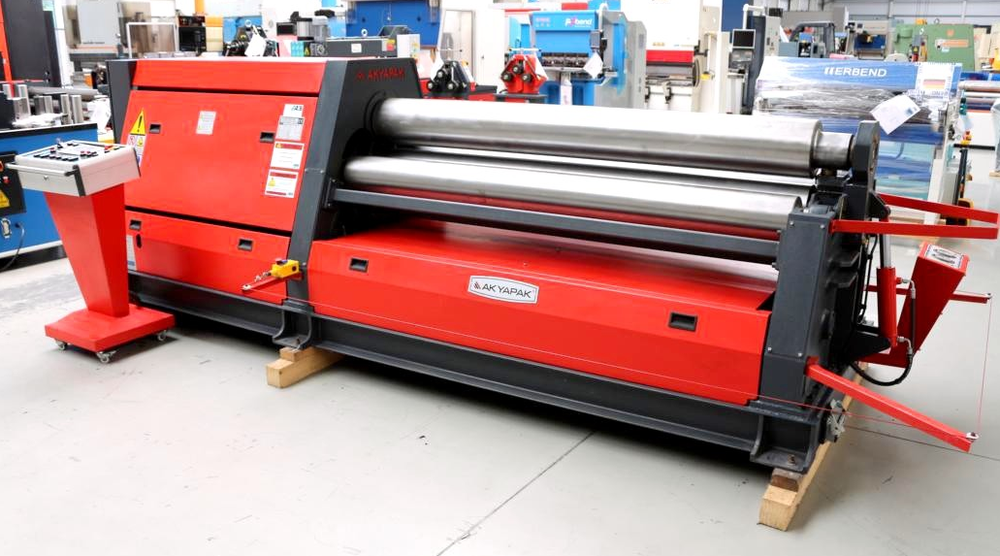

AK Bend AHS 20/10

Sheet Width 2100 mm
Plate Thickness 13.0 mm ST
Pre-Bending 10.0 mm ST
Diameter of Upper Rolls 230 mm
Side Roll Diameter 190 mm
Diameter of Lower Rolls 210 mm
Number of Working Hours ca. 100 h
Voltage 400 V
Total Power Requirement 7.5 kW
Weight of the Machine 4620 kg
Dimensions of the Machine 4150 x 1390 x 1200 mm

Electro-hydraulic 4-roll round bending machine
2x Driven Main Rollers (upper & lower roller)
Hydraulic Conical Bending Device
Induction-Hardened Rollers
Straightening Function for Welded Pipes
Control Unit / Display with Touchscreen Function
Digital Position Display for Both Side Rollers
Mobile Control Panel
2x Bending Speeds Selectable
Hydraulic Folding Bearing
Safety Device (safety line with switch unit)
Pressure Gauge / Pressure Display for the Rollers
CE Mark + Declaration of Conformity
Operating Instructions
