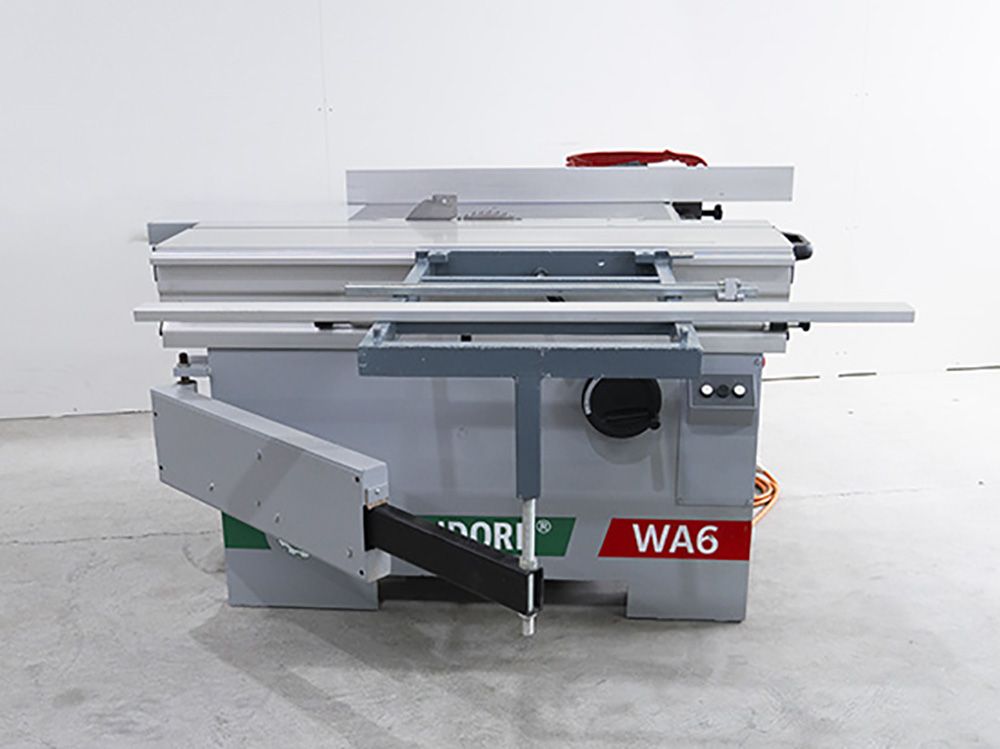

Altendorf WA6

Format circular saw
Basic equipment:
-Proven double roller trolley with steel guide and Multi-hollow chamber system
-Manual height adjustment and tilt
-Precise tilt indicator thanks to the watch in the handwheel
-Separate scoring motor
-protective hood with suction hose above the Saw blades attached to the split wedge
-Precise angle miter stop, infinitely adjustable BÖSCH A97
-cross slide easily degradable

Technical data:
Car length: 1600 mm
Cutting length: 1500 mm
Saw unit swivel: 0 – 45°
Cutting height b/sheet Ø315 mm (90°): 0-100 mm
Cutting height b/sheet Ø315 mm (45°): 0-70.7 mm
Right cutting width: 1000 mm
Saw motor: 4 kW (5.5 hp)
Speed: 4200 rpm
Scoring motor: 0.37 kW (0.5 hp)
2 suction nozzles Ø 50 / 100 mm
Space requirement: 3640 x 2745 mm
Insertion compound L/W/H: 1820x1700x1200 mm
Weight: 450 kg
PSV, pendulum protection device optionally available!
