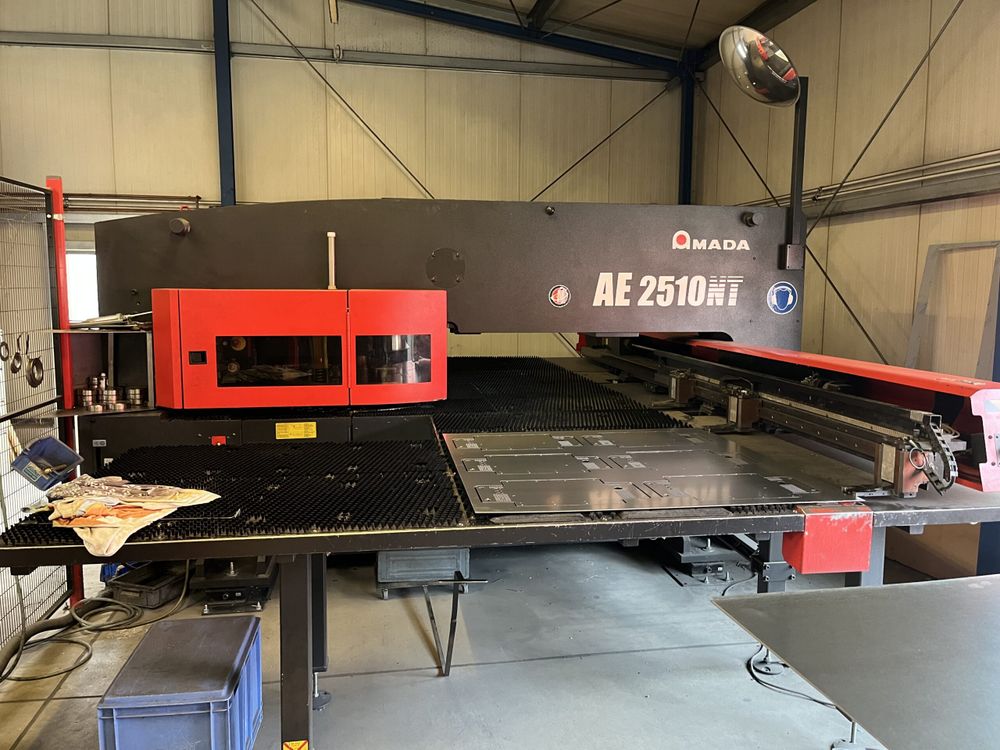

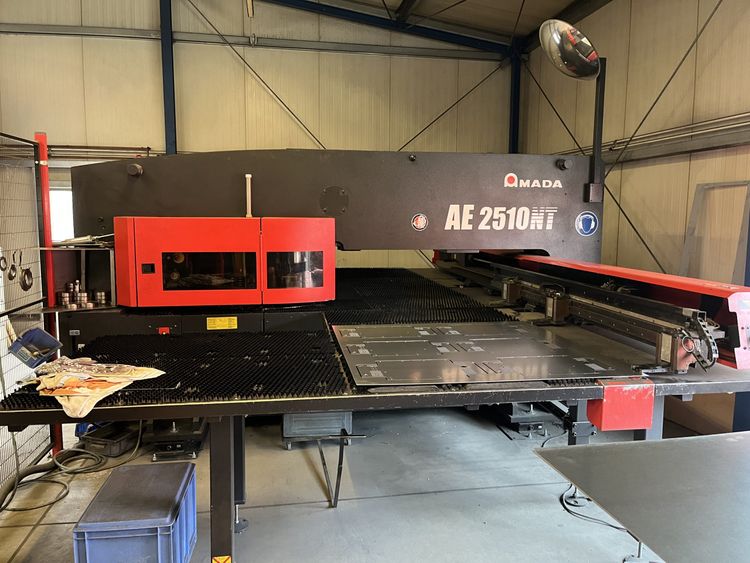

Amada AE2510 Electric Punch Machine 200 kN

Amada AE2510 Electric Punch Machine
Year 2014

Frame Construction Bridge Type
Numerical Control AMNC-F
Punching Force 200 kN
Drive System Single AC Servo Drive
Turret (No. of Stations) 51 Stations:
24 x A (Max. Dia. 12.7mm)
18 x B (Max. Dia. 31.7mm)
3 x C (Max. Dia. 50.8mm)
2 x D (Max. Dia. 88.9mm)
3 x G (Max. Dia. 31.7mm)
1 x H (Max. Dia. 50mm)
Auto Indexing:
3 x B (Max Dia 31.7mm)
1 x C (Max. Dia. 50.8mm)
Controlled Axis X, Y, C, T + A
Axis Travel Distance, X & Y 2500 x 1270 mm
Maximum Simultaneous Feed Rate X/Y 100 m/min
Maximum Punching Hit Rate (25.4mm pitch/ 5mm Stroke ) 350 hpm
Positioning Accuracy
+/- 0.1mm
Work Range Without Reposition 2500 x 1270 mm
Maximum Sheet Thickness 3.2 mm
Maximum Material Mass 50 (F1) / 150 (F4) kg

Machine Mass 12 500 KG
Machine Length 4155 mm
Machine Width 5120 mm
Machine Height 2115 mm
