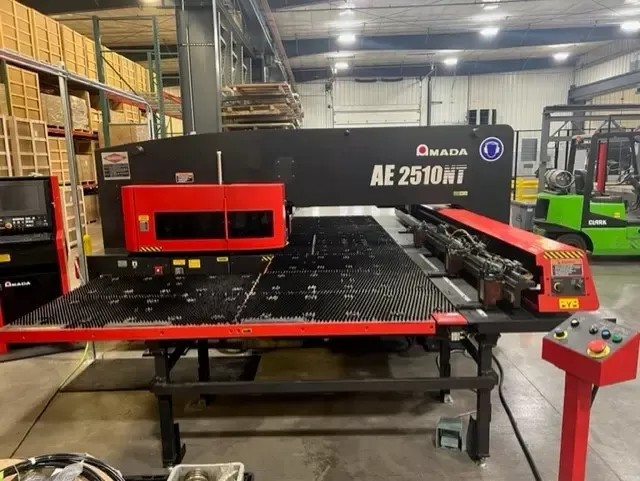

Amada AE-2510NT 20 T (press capacity also listed as 22 T in description)

Tonnage: 20 T (press capacity also listed as 22 T in description)
Table size: 50 in × 98.425 in
Max sheet size: 50 in × 196.85 in
Max sheet thickness: 0.125 in
Max material weight: 110 lb
Axis travels:
X-axis travel: 98.425 in
Y-axis travel: 50 in
Punching accuracy: ±0.004 in
Rapid feed speed X-axis: 3150 IPM
Rapid feed speed Y-axis: 2362 IPM
Marking speed: 900 HPM
Punching speed: 350 (X)
Punching speed: 285 (Y)
Turret rotation speed: 30 RPM
Auto-index rotation speed: 60 RPM
Turret stations: 58
Turret configuration: 58-station 2 auto-index turret
Maximum hole diameter: 4.5 in
Tool feed clearance: 0.984 in
Tool storage program memory: 10 MB
Maximum program size: 120 KB
Graphic display: TFT 15 in
Punching head type: Brush table system
Pneumatic X-gauge block
Pneumatic clamps: 3 standard
Slug removal system: PV (Power Vacuum) 0.5 in and 1.25 in
Operating voltage: 200/208 V, 3 phase
Power requirement: 19 KVA
Air pressure requirement: 72 PSI
Compressed air flow: 17.65 CFM
Machine dimensions: 208 in × 202 in × 86 in
Machine weight: 26000 lb
CNC control: Amada NT CNC Control
