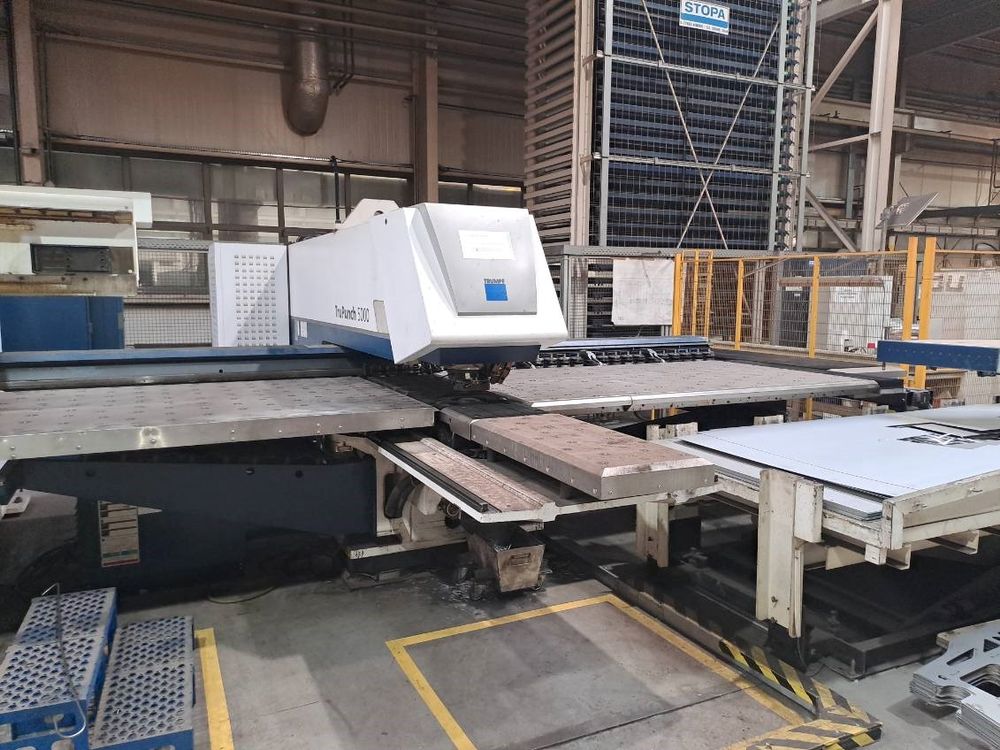

Trumpf TruPunch 5000 - 1600 (S10) 22 t

Punching force: 22 t
Working area: 4000 x 1650 mm
Max. sheet thickness: 8 mm
Max. material weight: 230 kg
Control: Siemens Sinumerik 840 D
Stable C-frame
Coordinate guide
Linear magazine with 21 stations
4 clamps
3-phase servo motors
Repositioning unit with programmable stripper
Ball-fitted tables
Parts chute 500 x 500 mm
Good parts container
Chip container
Automatic shutdown mechanism
Electro-hydraulic punching head
Rotatable single tool adapter
Manual adjustable presser foot force
Programmable presser foot
Tool length compensation
Spray lubrication for punches
Forming function
Sheet collision detection
12" TFT screen
NC program management
Production plan
Online help
Integrated technology data
Diagnostic functions
Extended shop floor programming
Simplified programming
USB interface
Network connection
CE marking
Multi-beam light barriers
Rapid hydraulic shutdown
MultiTool function
MultiBend function
Tapping function
Marking / rapid beading function
Deburring and roller technology function
StripLine
Active die
Die spray lubrication
Repositioning cylinders
Sensor for part chute
Installation on air cushions
Blow-out device for small parts
SheetMaster sheet handling system
Suction frame 4000 x 1650 mm
Peeler cup
Vacuum sensor
Central lubrication
Sheet thickness sensor
Automatic clamps closing
Suction plate module
GripMaster automation component
Scrap skeleton removal 4000 x 1650 mm
Automatic stacking of scrap skeletons
Scissors table
Process monitoring sensors
Tilting scrap skeleton pallet 4000 x 1650 mm
Additional scrap skeleton pallet 4000 x 1650 mm
Safety devices for storage system connection
Second light barrier circuit
Store interface
