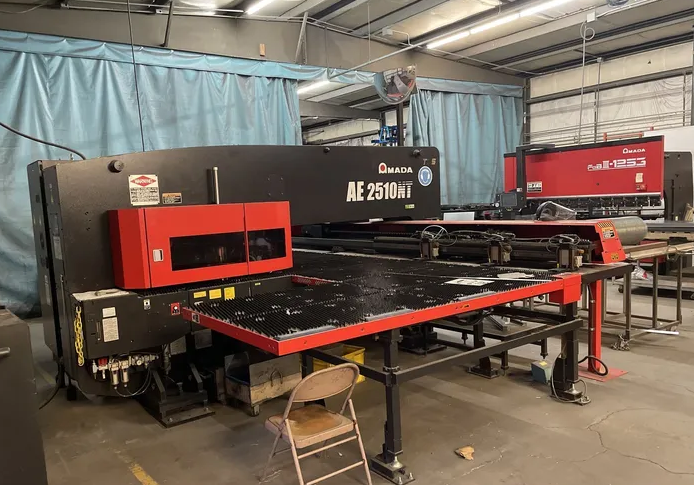

Amada AE 2510 NT 22 T

Tonnage: 22 T
Sheet size: 98.425" x 50"
Largest punched hole: 3-1/2"
Number of turret stations: 45 Station 4-Auto-Index
Stroke length: 1.65"
X hits per minute: 350 HPM
Y hits per minute: 280 HPM
X/Y hit rate marking: 900 HPM
Linear positioning speed X axis: 3,150 IPM
Linear positioning speed Y axis: 2,362 IPM
Control model: Fanuc AMNC/PC (NT)
Drive motors: AC Servo
Smallest programmable increment: 0.001"
Machine weight: 28,660 lbs
Single AC servo driven ram
Built-in microprocessor with standard programming software
Diagnostic system for programming errors and machine malfunctions
On screen G-Code simulator
Intelligent turret setup for tool locations, angles, and clamp positions
Job scheduler for specifying job order and quantities
Stripping sensor
Automatic repositioning with heavy duty work holders
Metric or inch dimensional programming
Precision ground recirculating ball lead screws for X and Y axis
Crash proof clamp sensors
Hardened and ground turret index pins and bushings
Safety interlocks and overrun protectors
Air blow system
45 station 4-Auto Index thick turret
Brush table
Tooling cabinet loaded with various punches and dies
