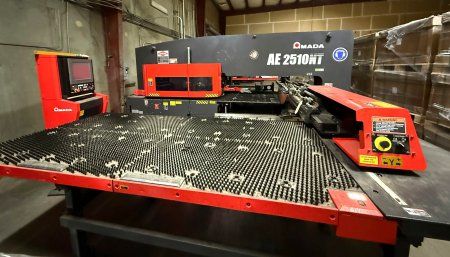

Amada AE2510NT 22 ton

Press force: 22 ton
Maximum punching capacity: 0.25"
Maximum punch stroke: 1.65"
Maximum travel without reposition: 50" x 98.4"
Maximum travel with one reposition: 50" x 196.8"
X-axis maximum feed rate: 3150 IPM
Y-axis maximum feed rate: 2362 IPM
Maximum hit rate: 900 HPM
X-axis hit rate: 350 HPM
Y-axis hit rate: 280 HPM
Maximum material weight: 331 lbs
Turret type: Thick style
Number of turret stations: 51
Number of auto-index stations: 4
Turret rotational speed: 30 RPM
Auto-index rotational speed: 60 RPM
CNC control: AMNC/PC
System weight: 28,660 lbs
Overall dimensions: 201.57" x 163.58" x 80.16"

Features / Equipment
Captured bridge frame
AC servo drive
AC servo punch/form/scribe drive
Brush table
Pneumatic clamping system
