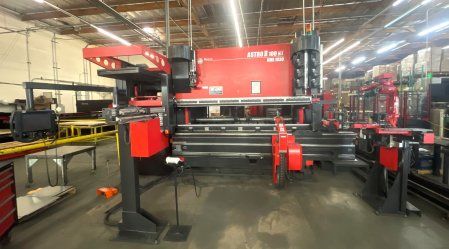

Amada ASTRO 100NT, HDS1030NTR 110 U.S. tons

Robotic Bending Cell
Amada ASTRO 100NT, HDS1030NTR
Installation Year: 2015

Automated Bending Robot:
Model: Astro II 100NT Cell
Drive Motors: AC Servo (5 motors)
Maximum Part Size: 31.5" x 39.5"
Maximum Material Weight: 33 lbs
Flange Length Repeatability: 0.004"
Gripper Specifications: One-touch pins
Power Requirements: 200 VAC, 35 KVA, 100A, 3 Phase
Air Requirements: 30 ft³/min @ 71 PSI
Machine Weight (Robot Unit): 1,234 lbs
Overall Dimensions (Robot Unit): 385.83" (L) x 294.50" (W) x 125.75" (H)

Precision Press Brake:
Model: HDS-1030NTR
Maximum Tonnage: 110 US tons
Bed Length: 118.11"
Maximum Stroke Length: 7.87"
Open Height: 19.7"
Throat Depth: 13.5"
Distance Between Housings: 106.3"
Ram Repeatability: 0.00004"
Angularity Accuracy: 0.25°
Approach Speed: 7.87 in/sec
Bending Speed (Max, Programmable): 0.78 in/sec
Return Speed: 7.87 in/sec
Machine Weight (Press Brake): 19,180 lbs
Hydraulic Oil Capacity: 15.2 gallons

Backgauge Specifications:
Repeatability – L Axis: 0.0001"
Movement Range – L Axis: 27.55"
Movement Range – Y Axis: 106.3"
Movement Range – Z Axis: 9.8"
Feed Speed – L Axis: 1,181 IPM
Minimum Command Unit: 0.001"

CNC Controller:
Model: AMNC/PC
Axes of Control: 8
D1 & D2: Ram Depth
L1 & L2: Backgauge
Z: Vertical Finger Position
Y1 & Y2: Horizontal Finger Movement (Side to Side)
CC: Bed Crowning
Input Method: Touch Screen
Display: 14.1" Color LCD
Bends per Program: 25
