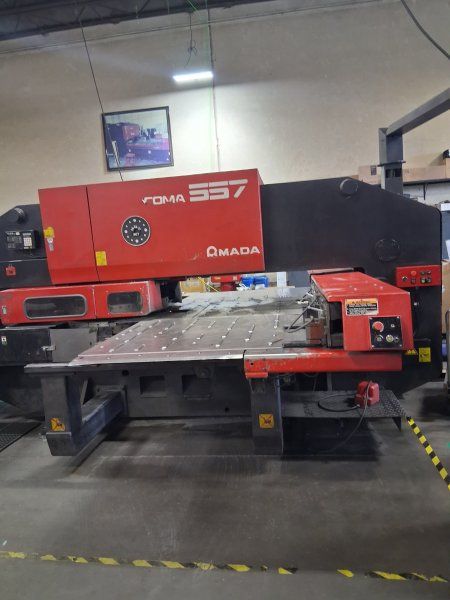

Amada COMA 557 55 tons

press force: 55 tons
sheet size: 50" x 72"
sheet size with auto reposition: 50" x 144"
material thickness: 0.375 in
material weight: 485 lbs

hit rate (1" centers): 200 strokes/min
nibbling rate: 300 strokes/min
max hole diameter: 4.5 in
punching accuracy: 0.0050 in

X-axis travel: 72 in
Y-axis travel: 50 in
table size: 72" x 50"
max table speed (X/Y): 2000 IPM
throat depth: 50 in

turret type: 58 stations with 2 auto index
turret speed: 30 RPM
material reposition system: roller ball table

approximate dimensions: 179" L x 148" D
approximate weight: 37,500 lbs

turret punching machine
CNC sheet metal punching system
high-speed punching and nibbling capability
