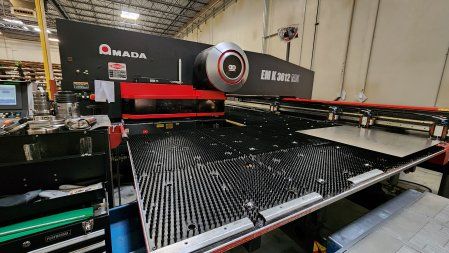

Amada EMK3612 M2 33 Tons Press Capacity

AMADA EMK3612 M2
2015

33 Tons Press Capacity
120" X-Axis Travel
60" Y-Axis Travel
240" Maximum Sheet Size with Reposition (X)
60" Maximum Sheet Size with Reposition (Y)
110 lbs Maximum Sheet Weight (F1)
330 lbs Maximum Sheet Weight (F4)
0.984" Feed Clearance
1.45" Stroke Length
0.187" Maximum Sheet Thickness
±0.004" Punching Accuracy
±0.0027" Punching Accuracy in High Accuracy Mode
3,937 IPM Table Positioning Speed (X)
3,150 IPM Table Positioning Speed (Y)
30 RPM Turret Rotation Speed
500 HPM Punching Hit Rate at 1" Pitch (X Axis, 0.2" Stroke)
300 HPM Punching Hit Rate at 1" Pitch (Y Axis, 0.2" Stroke)
1,800 HPM Nibbling Hit Rate at 0.080" Pitch (0.2" Stroke)
200/208V 3-Phase Electric Power Required
46,200 lbs Machine Weight
Servo-Driven CNC
Turret Punch
