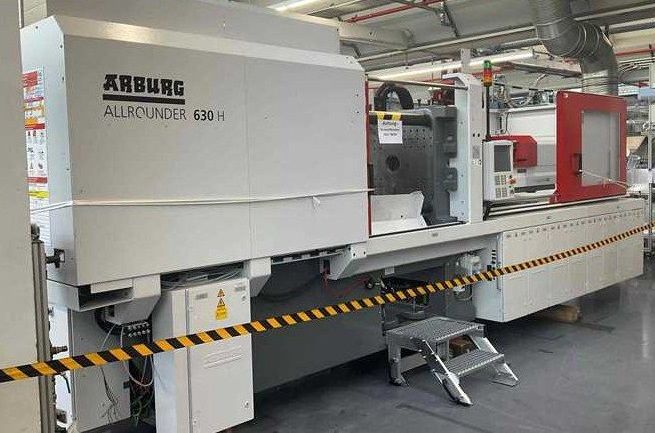

Arburg Allrounder 630 H 2500-400 250 T

Control: Selogica
Year of manufacture: 2019

Technical specifications, clamping side
Clamping force: 2500 kN
Tie bar dimensions h x v: 630 x 630 mm
Platelet dimensions h x v: 900 x 900 mm
Min. installation height: 300 mm
Max. installation height: 750 mm
Max. platen spacing: 1300 mm
Opening stroke: 550 mm
Ejector stroke: 225 mm
Ejector force: 86 kN
Centering of movable platen D: 160 mm
Centering of fixed platen D: 160 mm

Technical specifications, injection side
Screw diameter: 40 mm
Displacement: 201 cc
Injection pressure: 2000 bar
Screw torque: 550 N
Injection flow to the outside: 251 g/s PS

Dimensions & Weight
Machine dimensions LxWxH: 7.05m x 2.05m x 2.35m
Total weight: 13050kg

Equipment
Screen text in German
CEE socket 16A
Machine including handling unit
Machine with water battery
Machine without material hopper
Machine without protective enclosure
Leveling elements
Handling interface
OPC interface
Schuko socket 10A

Technical data handling unit
Machine type: Linear
Make: ARBURG
Control system: Multilift V 15
Year of manufacture: 2019
Handling weight: 15 kg
Total weight: 500 kg
