ATG A6

MECHANICS

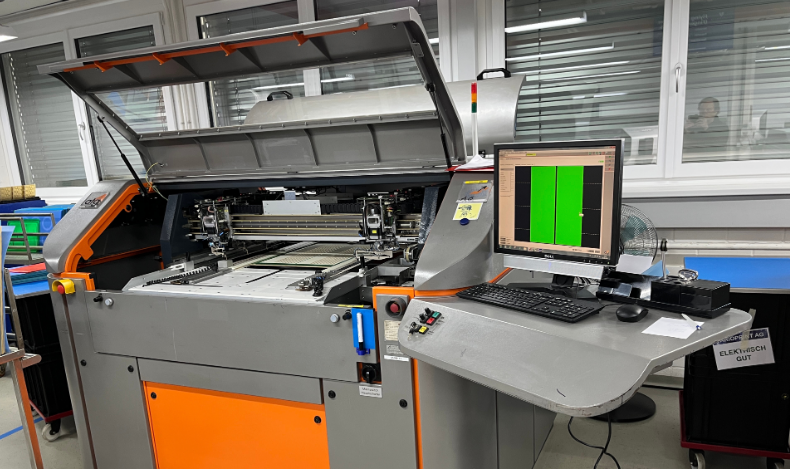

Basic unit with 16 test probes (8 top, 8 bottom)
Variable board fixing system, multi board test
Max. board size (X x Y) : 24.8" x 26.4" (630 x 670 mm)
Test area: 23.6" x 24.4" (600 x 620 mm)
Board thickness: up to 10 mm (0.4")
Probe accuracy: ±10 µm (±0.4 mil)
Smallest pad: 35 µm (1.4 mil)
Smallest testable pitch: 75 µm (3 mil)
Repeatable accuracy: ±5 µm (±0.2 mil)
Glass calibration board.

ELECTRONICS
Continuity test: 1 Ohm is 10 KΩ,
Isolation test: ±(0.5Ω ±0.5%)
up to 25 ΜΩ (FM),
Test voltage: 200 ΜΩ (ohmic)
up to 500 V

TEST PROBES
Contact pressure: 10 to 100 g (0.35 to 3.53 oz)
Probe speed: 10 to 100 mm/s (0.39"/sto 3.94"/s)
Z-axis travel: 0.75 to 20 mm (0.03" to 0.79")

CAMERA SYSTEM
2 cameras for optical scanning of top and bottom side
Adjustable accuracy: 5 to 100 µm
Automatic shrinkage compensation
Free seledable scan marks

OPTIONS
-Selective high voltage test up to 500 V with
seledive isolation test up to 500 ΜΩ
-Four-wire measurement: 1 m2 to 1 kΩ (±0.1 mΩ)
-Tension frame for flexible, double sided boards,
max. board size: test area:
20.0" x 24.0" (508 x 610 mm)
18.0" x 23.0" (457 x 584 mm)
Sintered vacuum box for single-sided test of inner layers and
flexible boards, max. board size 24.0" x 24.8" (610 mm x 630 mm),
higher test speed by external antennae, Flip test
Retest with barcode support of fault files from grid test sytems
Repair station with camera system and barcode support
