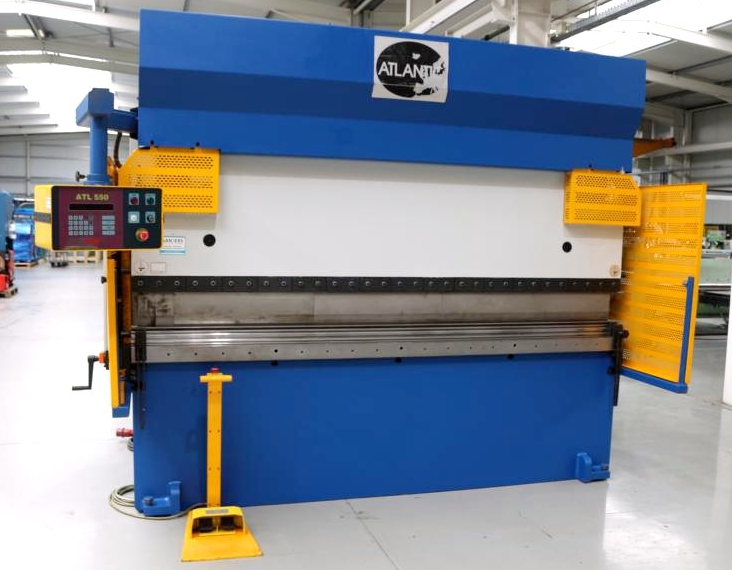

Atlantic HPT 220/30 220 t

Press force: 220 t
Bending length: 3100 mm
Distance between columns: 2600 mm
Stroke (stepless adjustable): 200 mm
Column arm: 300 mm
Table height: 965 mm
Daylight: 450 mm
Working feed: 9.0 mm/sec
Return speed: 80.0 mm/sec
Control: ATL 550
Hydraulic pressure: 300 bar
Voltage: 380 V
Total power requirement: 18.7 kW
Weight: 11400 kg
Machine dimensions (L×W×H): 3500 × 1900 × 2800 mm

Features / Equipment

Robust NC-controlled hydraulic press brake
ATL 550 NC control unit
Backgauge positioning X-axis
Depth adjustment positioning Y1+Y2 axes
Target/actual input
Jog mode
Swiveling control panel
NC electro-motorized backgauge
2 stop fingers, manually adjustable R+Z axes
Manual under-table crowning
Handwheel with analog display
Split top die
Multi-V rotating universal die block
Side safety device with swinging doors
Rear safety device with sliding door
Freely movable double foot switch
Front material support arms (2 units)
Operating instructions
Wiring diagram
CE declaration
