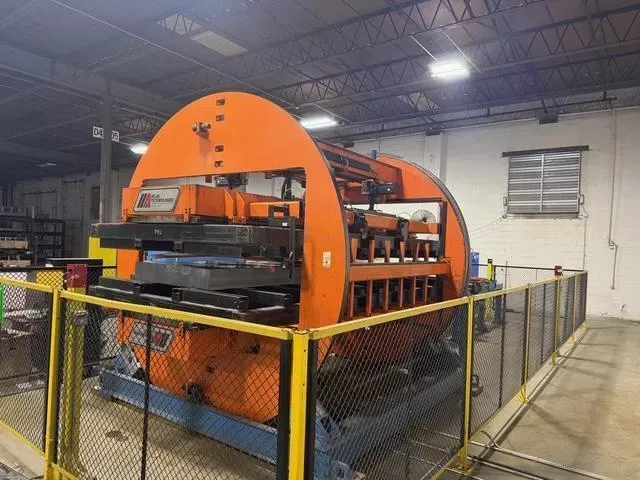

Atlas ATLAS BUNDLE TURNOVER Stack & pallet weight capacity 25,000 lbs
Ref :
2788886-3-AW
Condition :
Used
Manufacturer :
Atlas
Model :
ATLAS BUNDLE TURNOVER
Short Description :
Stack & pallet weight capacity 25,000 lbs
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Minimum stack size 16" x 16"
Maximum stack size 92" x 184"
Maximum stack height 18"
Minimum stack height 2"
Load table height 48" approx.
Clamp direction down only
Steel pallet size 87.56" x 91.81" x 10"
Steel pallet size 130.50" x 91.81" x 10"
Steel pallet size 172.50" x 91.81" x 10"
Turnover stroke distance 18" approx.
Load table speed 19.3 FPM approx.
Clamp speed 1.34 FPM approx.
Rotation speed 180° in 54 seconds approx.
Control Rockwell MicroLogix PLC
HMI Rockwell PanelView
Power requirement 460 VAC 3 phase 50/60 Hz
Safety guarding for rotating and moving parts
Manual grease lubrication system
