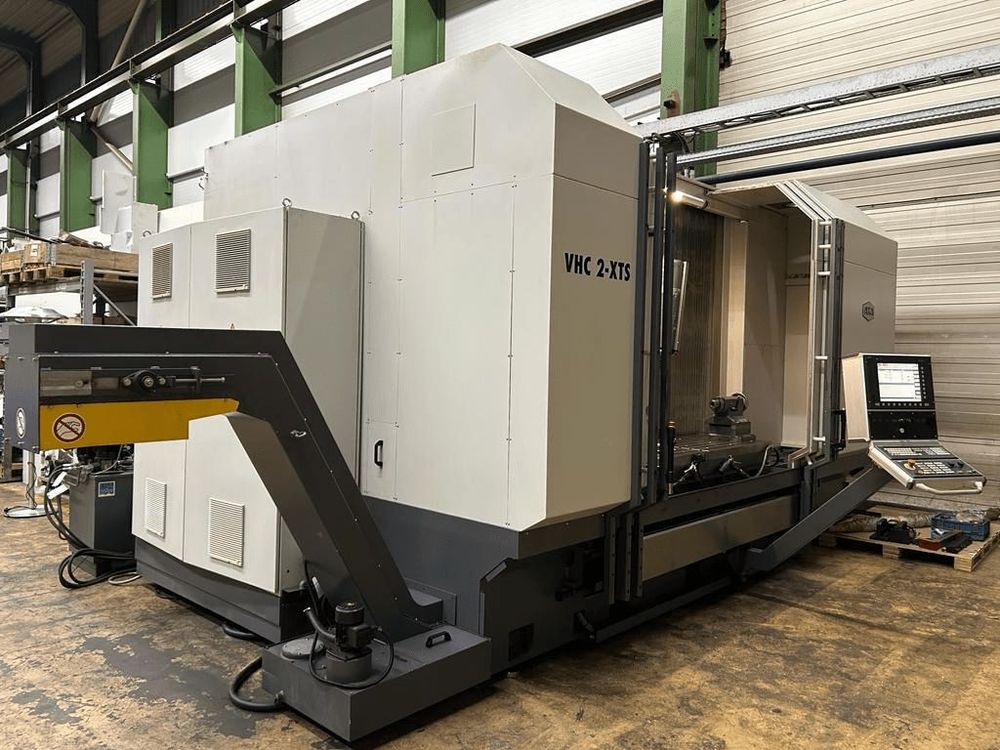

AXA VHC 2 - 1760 XTS 5 Axis
EUROPE (Western and Northern)
X-Axis Travel: 1760 mm (2 x 630 mm)
Y-Axis Travel: 600 mm
Z-Axis Travel: 800 mm Horizontal / 770 mm Vertical
B-Axis: ±100°, Hydraulically Clamped, Continuous Interpolation
Rapid Traverse X/Y/Z: 40 / 40 / 30 m/min
Controlled Axes: 5
Control: Siemens 840D ShopMill
Spindle Speed: 30 – 6000 rpm
Spindle Power: 30 kW
Torque: 143 Nm
Tool Holder: SK40
Tool Positions: 36
NC Rotary Table: AXA RTA 4L-520
Faceplate Diameter: 520 mm
Tailstock: Manual
Tailstock Center Height: 280 mm
Through-Spindle Coolant: 30 bar
Chip Conveyor: Left Discharge
Integrated Coolant Tank: 200 l
Coolant Tank Capacity: 400 l
3D Probe: Renishaw RMP60 with RMI Receiver
External Coolant with Compressed Air or Emulsion
Direct Measuring System: Heidenhain
Operating Mode: 4
Hardened Box Guideways
Turcite-Coated Counter Guideways
X/Y Base Slide Turcite Renewal: 2022
Machine Weight: 12000 kg
Machine Dimensions: 5.2 x 3.4 x 3.3 m
