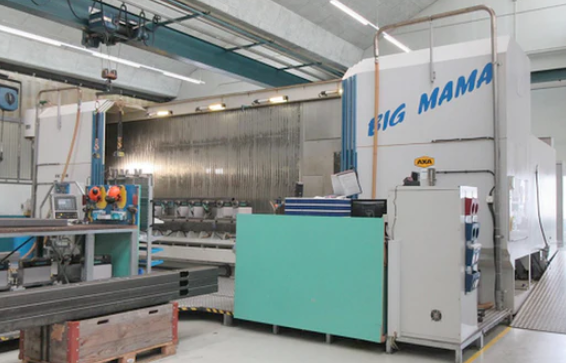

AXA VHC-50-6000-M/2E 4 Axis

X-Axis Travel: 6000 mm
Y-Axis Travel: 1000 mm
Z-Axis Travel: 1140 / 1200 mm
Feed Rate X-Axis: 1–9999 mm/min
Feed Rate Y-Axis: 1–9999 mm/min
Feed Rate Z-Axis: 1–9999 mm/min
B-Axis Travel: ±90°
B-Axis Indexing: 0.001°
Rapid Traverse X: 20 m/min
Rapid Traverse Y: 20 m/min
Rapid Traverse Z: 15 m/min
Control: Siemens Sinumerik 840D
Number of Axes: 4
Coolant System
Direct Measuring System X/Y/Z Axes
Chip Conveyor
Orientable Vertical Milling Head CN
Oil Mist Extractor
Table Size: 6400 × 1000 mm
Tool Magazine Capacity: 80 Tools
Maximum Tool Diameter: 100 mm
Maximum Tool Diameter with Free Adjacent Pockets: 180 mm
Maximum Tool Length: 400 mm
Maximum Tool Weight: 15 kg
Tool Change Time: 6 sec
Spindle Speed: 45–9000 RPM
Spindle Power: 24 / 45 kW
Spindle Taper: HSK-A100
Air Requirement: 6 bar
Power Supply: 400 V / 50 Hz / 3 Phase
Total Power Requirement: 80 kVA
Machine Dimensions: 11500 × 4300 × 4500 mm
Machine Weight: 48000 kg
