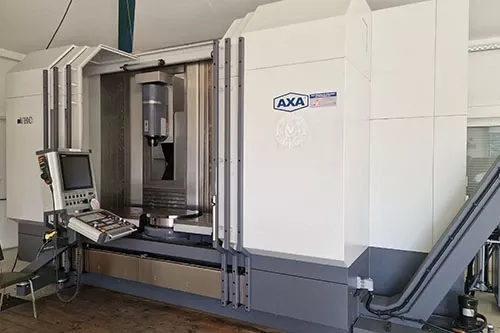

AXA VHC 2-XTS 5 Axis

X-axis travel 1760 mm
Y-axis travel 600 mm
Z-axis travel 850 mm
Vertical distance between table and spindle nose 0 - 820 mm
Horizontal distance between table and spindle nose 180 - 1030 mm
Spindle speed range 30 - 12,000 rpm
Swivel head B-axis interpolating
B-axis travel range -100 to 100
Max. torque at 40% ED 191.0 Nm
Max. torque at 100% ED 127.0 Nm
Max. power at 40% ED 40.0 kW
Max. power at 100% ED 26.6 kW
Rotary table RTA 4-TF-630
Table diameter with vertical axis of rotation 630 mm
Rotary table weight 595 kg
Tool holder HSK A 63
Tool positions 42
Machine length 6850 mm
Machine width 3450 mm
Machine height 3100 mm
Machine weight 19 t
Measuring probe
