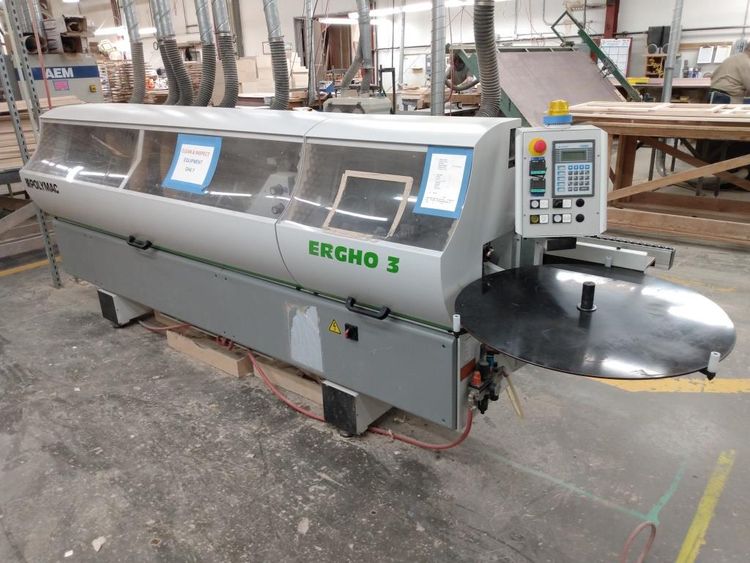

Biesse Ergho 3

-Panel thickness: 10-45/50mm
-Min. and max. banding strip height: 13-50mm
-Thickness of banding material in rolls: 0.4-3mm
-Thickness of banding material in strips: 0.4-15mm
-Max. section of solid wood banding strip: 15 x 45mm
-Panel protrusion beyond track: 25mm
-Min. panel length: 150mm
-Min. panel width (with length at least 250mm): 50mm
-Operating speeds: 10/20 m/min
-Diameter of suction hoods: 80mm
-Edgebanding strip feeder 09.01
-Gluing unit 08.01
-Edge trimming unit 11.01
-Super imposed double edge-trimming unit 13.01
-Chamfering unit 15.01
-Edge scraper unit RBK 501 20.01 (top and bottom)
-Brush unit 23.01
-Machine length: 4080mm
-Machine weight: 1640kg
