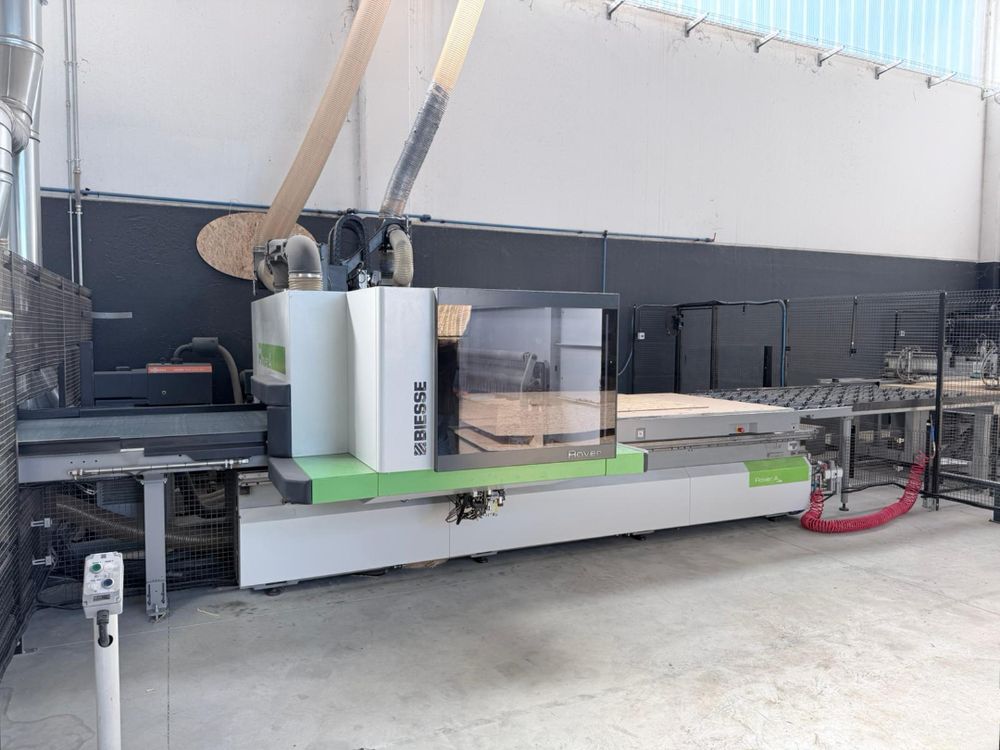

Biesse ROVER A FT 1531

Nesting cell complete with loading and unloading
Table dimensions: 3100 x 1600 mm
19.2 kW electrospindle, HSK F63 toolholder, liquid-cooled.
Vertical drilling bits: 10
Horizontal drilling bits X: 4
Horizontal drilling bits Y: 2
Circular blade diam. 120 mm in the X-direction
16-station turret tool magazine
Control: BH660
Software: bSolid
Remote control panel
3 x 250 m3/h vacuum pumps
Safety laser
Automatic lubrication system
Automatic loading and unloading system (sweeping arm + loading suction cups)
Loading system for thin and breathable thin panels for Type B loading station
Automatic printing and application system with 0-90° rotation of barcode labels
Scissor lift
Panel unloading conveyor
Suction system above the unloading conveyor
