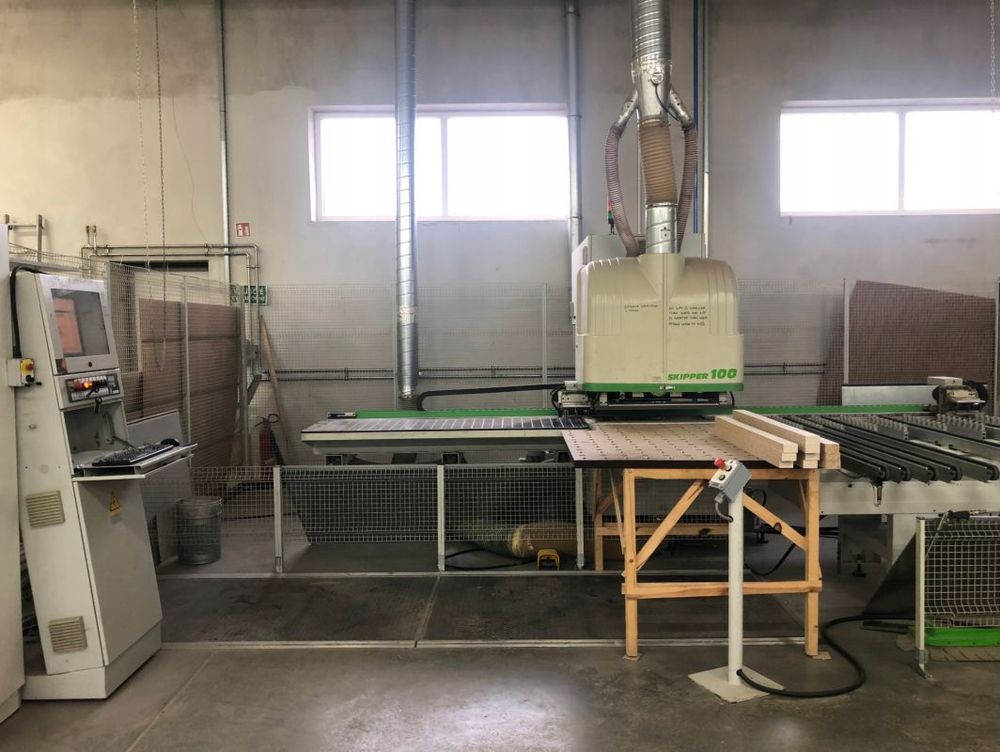

Biesse Skipper 100

CNC - Machining Center
Technical data :
Workpiece dimensions
- Length: 90 - 3,000 mm
- Width: 70 - 1,000 mm
- Thickness: 8 - 60 mm

Working ranges :
X-axis
- Vertical drilling: 0 - 3,000 mm
- Horizontal drilling (X and Y): 0 - 3,000 mm
- Continuous routing: 0 - 2,500 mm
- Partial routing: 0 - 3,000 mm
- Continuous grooving with saw (X direction): 0 - 2,500 mm
- Partial grooving with saw (X direction): 0 - 3,000 mm

Y-axis
- Vertical drilling: 0 - 1,000 mm
- Vertical drilling with 32 mm system: 32 - 1,000 mm
- Horizontal drilling in X: 0 - 1,000 mm
- Horizontal drilling in Y: 90 - 1,000 mm
- Routing: 0 - 950 mm
- Grooving with saw (X direction): 112 - 1,000 mm

Z-axis
-Material thickness: 0 - 60 mm

Equipment :
The machine is equipped with 78 independent drilling spindles, divided into two mirrored machining units:
- 39 spindles in the upper unit
- 39 spindles in the lower unit

Each machining unit includes:
29 vertical drilling spindles (19 along the X-axis and 10 along the Y-axis, 32 mm spacing)
- 8 horizontal drilling spindles along the X-axis (4 with dual output)
- 2 independent horizontal drilling spindles in the X direction
- 2 independent horizontal drilling spindles in the Y direction
- 3.5 kW HSK electrospindle
- Spindle speed: 6,000 - 18,000 rpm

Additional equipment :
- Roller loading table
- Upper and lower work tables (pressure tables)
- Upper and lower machining units
- Right-side belt unloading conveyor
- Electronic thickness control
- Central automatic lubrication
- PC-based CNC control (Windows XP 600 with Soft CN)
- Safety system
