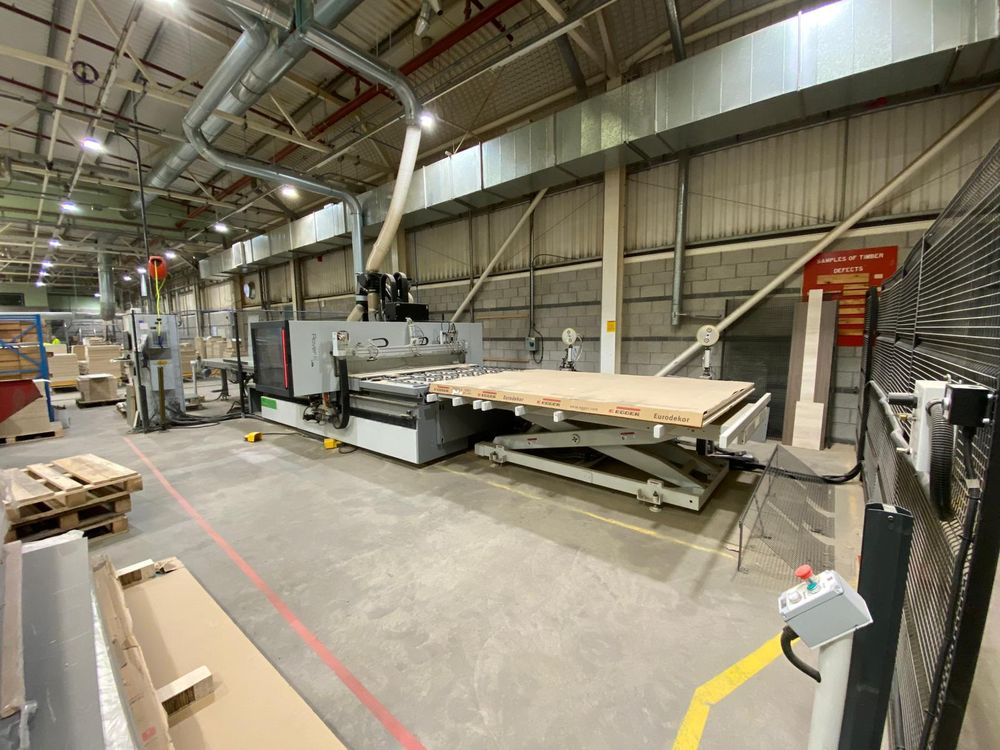

Biesse Rover K FT 2231

Machine Type CNC Nesting Machining Centre
Table Size (FT Worktable) X = 3098mm / Y = 2203mm
Maximum Axis Speed (X-Y-Z) 25 / 25 / 25 m/min
Z Axis Stroke 320mm
Z Axis Piece Passage 170mm
Vacuum System 8 Zone Multizone Vacuum Table
Vacuum Pumps 2 x 250 m³/h Rotary Claw Vacuum Pumps
Loading System Automatic Loading Station with Vacuum Cups
Unloading System Automatic Sweeping Arm & Belt Conveyor
Electrospindle 9.0kW (12HP) HSD Air-Cooled
Tool Interface HSK F63
Spindle Speed 1,000 – 24,000 RPM
Tool Changer 14 Position Automatic Tool Changer
Boring Head BH10 Boring Head
Horizontal Drilling Included
Tool Length Presetter Included
Software BSolid 3D CAD/CAM + bNest Nesting Software
Machine Control CNC Numerical Control
Power Backup UPS System for Machine PC
Condition Excellent / Production Ready
