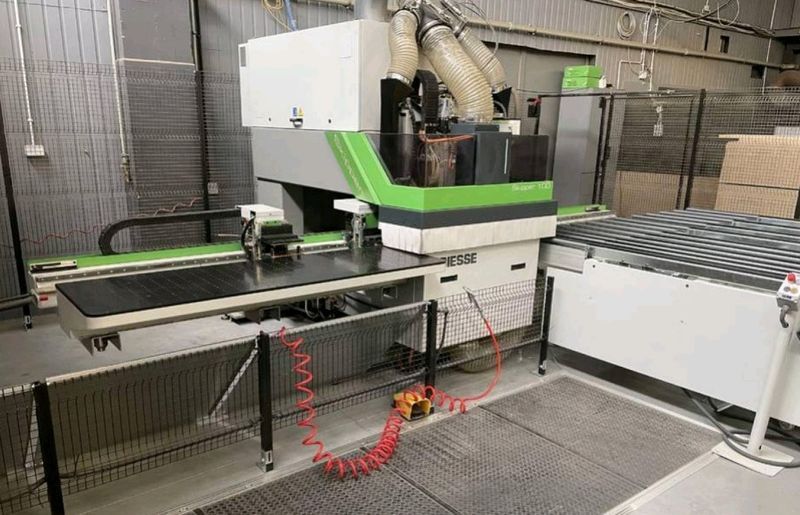

Biesse SKIPPER 100 L
Ref :
2770156-15-MT
Condition :
Used
Manufacturer :
Biesse
Model :
SKIPPER 100 L
Year(s) :
2018
Quantity :
1
Location :
Seller or machines location:
RUSSIA and Central Asia
RUSSIA and Central Asia
Operating range X 3,000 mm
Working range Y 1,000 mm
Operating range Z 60 mm
Vertical drilling spindles 58
Table type Pass-through device
Special type of workpiece clamping Pliers clamp
Software BIESSE BIESSEWORKS
Independent Z-axis 2
Number of milling spindles 2
max. speed 24,000 rpm
Main engine 3.5 kW
Horizontal drilling group X 16
Horizontal drilling group Y 4
Saw for cutting grooves/grooves in the direction of the X-axis
Cantilever type
Reads DXF format
Final transportation belt conveyor
Safety device Sensor safety mats
CE mark
Full connection 24.94 kW
Weight 3,350 kg
Automatic central lubrication
