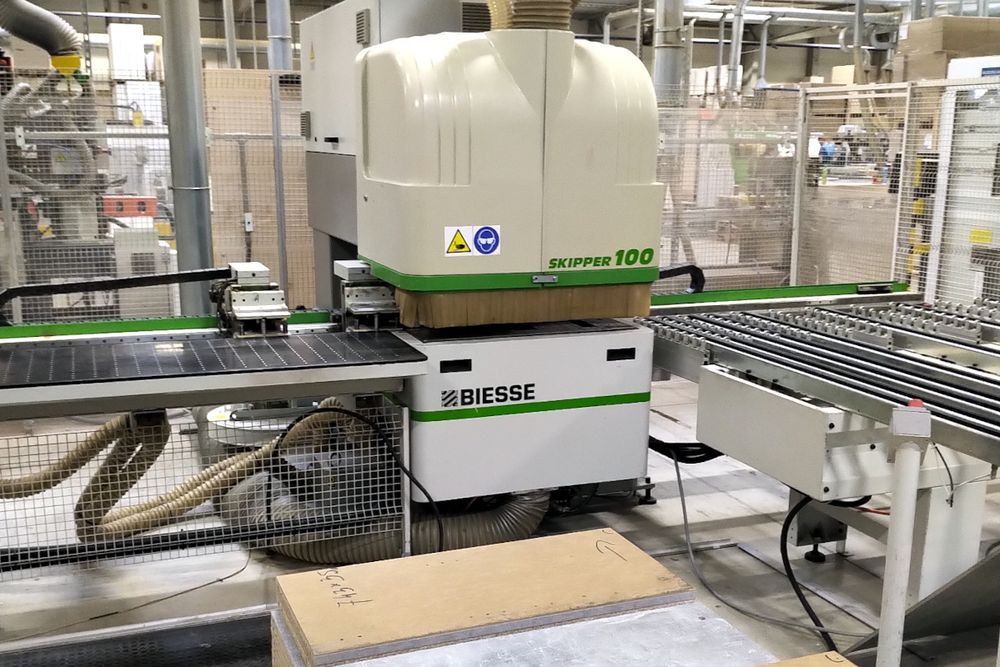

Biesse SKIPPER 100

Number of spindles:
A total of 78 independent spindles, 39 on the upper head and 39 on the lower.
Each working head contains:
– 29 independent vertical spindles (17 in X and 12 in Y)
– 8 independent horizontal spindles in X axis
– 2 independent horizontal spindles in Y axis

Automatic central lubrication
On all moving axes with NC control and brushless motor

Additional equipment
1. Loading table with air cushion
2. 2 pcs. electric spindles with a power of 3.5 kW
each 3. 2 pcs. grooving saws
4. Belt automatic unloading

Technical characteristics:
Size of the processed panel
Length 90-3000 mm
Width 70-1000 mm
Thickness 8-60 mm

Working area by length (X)
Vertical spindles 0-3000 mm
Horizontal spindles by X 0-2800 mm
Horizontal by Y 0-3000 mm

Working area by width (Y)
Vertical spindles 0-1140 mm
Horizontal spindles by X 0-1044 mm
Horizontal by Y 90-1070 mm

Working area by height (Z) 8-60 mm
