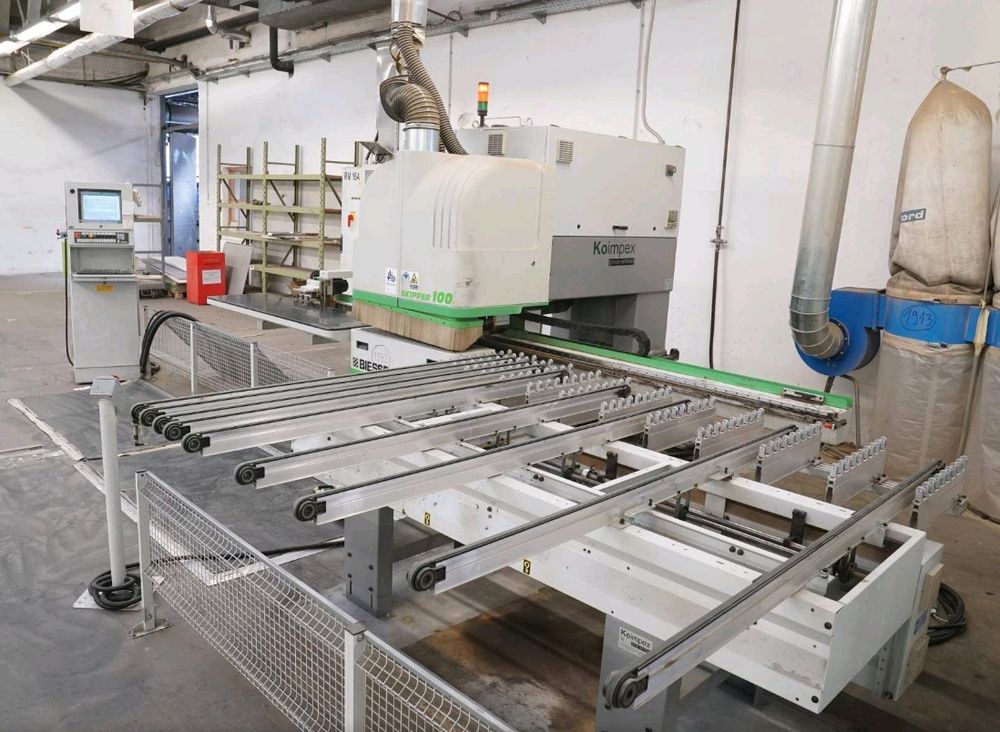

Biesse SKIPPER 100

Operating range X 3,000 mm
Working range Y 1,000 mm
Operating range Z 60 mm
Vertical drilling spindles 58
Table type Pass-through device
Special type of workpiece clamping Pliers clamp
control BIESSE XP 600
Software BIESSE BIESSEWORKS
mobile control of machine functions
air cushion table
control cabinet cooling
Independent Z-axis 2
Number of milling spindles 2
max. speed 18,000 rpm
type of clamping device HSK-D50
Main engine 3.5 kW
Horizontal drilling group X 16
Horizontal drilling group Y 4
Saw for cutting grooves/grooves in the direction of the X-axis
Cantilever type
Reads DXF format
Final transportation belt conveyor
Safety device Sensor safety mats
Full connection 24.94 kW
Automatic central lubrication
