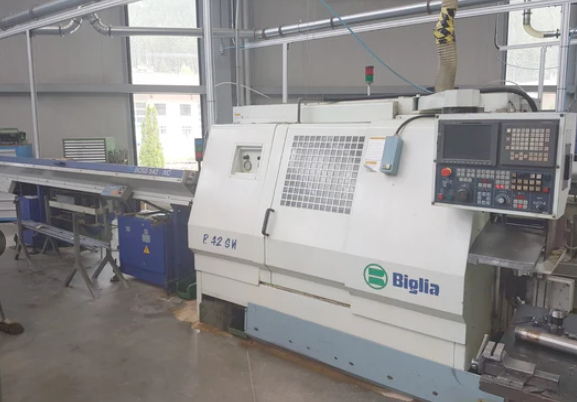

Biglia GE FANUC Series 18i-T 5000 RPM B 42 SM 3 Axis

Upper turret X-axis travel: 175 mm
Upper turret Z-axis travel: 305 mm
Lower turret X-axis travel: 132 mm
Lower turret Z-axis travel: 155 mm
Rapid traverse X-axis: 12 m/min
Rapid traverse Z-axis: 20 m/min
C-axis resolution: 0.001°
Control: GE FANUC Series 18i-T
Coolant system: 150 l
Maximum bar diameter: 41 mm
Spindle hole: 52 mm
Maximum turning diameter: 200 mm
Maximum turning length: 300 mm
Main spindle nose: ASA 5 in
Main spindle taper: DIN 6343
Main spindle speed: 100-5000 RPM
Main spindle power: 3.7-5.5 kW
Back spindle
Back spindle nose: ASA 4 in
Back spindle hole: 42 mm
Back spindle taper: DIN 6343
Back spindle speed: 5000 RPM
Back spindle maximum turning diameter: 150 mm
Back spindle maximum turning length: 150 mm
Driven tools: 6
Driven tool power: 1.5-3.7 kW
Maximum drill capacity: 25 mm
Tool shank size: 20 mm
Turret 1 positions: 12
Turret 2 positions: 12
Indexing time: 0.4 s
Number of spindles: 2
Number of turrets: 2
Distance between spindle noses: 560 mm
Spindle motor: 11-15 kW
Voltage: 400 V / 50 Hz / 3-phase
IEMCA bar feeder
Bar feeder model: BOSS 542
Maximum bar length: 3200 mm
Bar feeder capacity: 5-42 mm
Part separating device
Electrical cabinet cooling unit
Lamp
Status light
Machine weight: 4700 kg
Machine dimensions: 2500 x 2000 x 2100 mm
