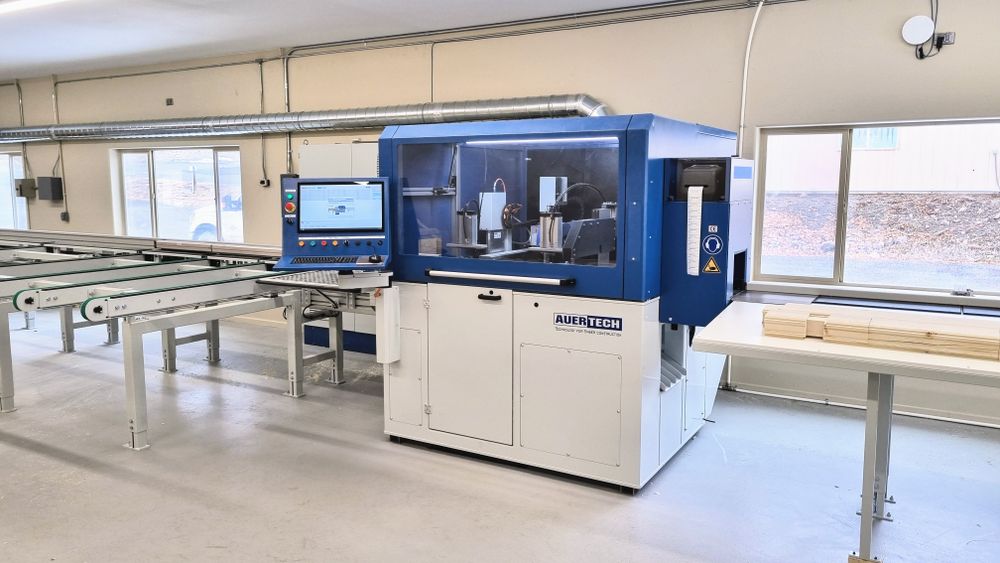

BL 100 A Log cabin milling machine

Log cabin milling machine Auertec
Cross Conveyor Feed Table
Number of strands: 6x with Supergrip timing belt
Pitch: 650 / 650 / 850 / 1500 / 1500mm
Length: ~1.8m
Drive: Gear motor, 1.5kW
Workpiece feed length: min. 0.8m
The operator places the raw material (log planks) on the cross conveyor.
The cross conveyor automatically transfers the workpieces to the infeed table by lowering the level.

Infeed Table
Smooth sliding table with plastic slide, where the raw material is pushed into the processing zone without damage using the servo pusher.
Support width: ~200mm
1 pc. Log House 4F-SERVO
Main milling unit for creating the log house corner joint by milling on four sides of the log plank in a single setup.
Machining is performed by two milling tools from behind and two milling tools from below, each guided on a horizontal and a vertical feed support.
Machining dimensions: 140 x 200 mm
Milling depths: horizontal top: max. 60 mm
horizontal bottom: max. 35 mm
vertical: max. 95 mm
Milling shafts: 30 mm
Milling cutters: max. x width: horizontal 2 x D = 220 x W = 120 mm
vertical 2 x D = 280 x W = 120 mm
Motor power: 4 x 4.0 kW
Speed ​​c
Feed rate horizontal & vertical: SERVODRIVE, continuously adjustable via software. Automatic operation. via IPC control / manually via two-hand push buttons
Milling depth adjustment spindle, digital counter
Workpiece clamping device vertical pneumatic horizontal pneumatic
Suction underfloor hopper ?160mm (pit required on site)
Complete with electrical equipment, PLC control, and pneumatics.
Machine stand with preparation for the installation of a face groove or dovetail milling machine, drilling rig, and miter saw.
Closed machine enclosure with a swing-open protective hood (operated by a gas spring) with a viewing window.
Electrical control cabinet on a base with a 3.0m cable conduit. - Ready for use, but without tools
1 x 4F.Posi automatic milling depth adjustment option for 4F milling machine
The system consists of 4 additional NC-controlled SERVO axes for automatic milling depth positioning of the 4F tools.
Inputs and parameter settings are carried out entirely via the IITO Control software.

The full control of all movements opens up numerous additional processing options:
- Individual grooves and millings on the four component sides.
- Millings or markings for window and door openings.
- Individual double-cut grooves on the component sides.
- Individual triple-cut joints.
- Half corner joints for upper and lower logs or for joists.
Automatic control with IPC / PLC / IITO software
Servodrive milling depth adjustment
Tolerance: +/- 0.1 mm
2 pcs. 4-piece groove cutters, D220; 21-90 mm; LM
for 4-piece horizontal milling machine
Wall thickness +/- 28-100 mm
Dimensions: ?220/30
Adjustability, width: 21.0 - 90 mm
Version: Z=3; V=3, LM / HM-WEPLA 15x15x2.5
2 pcs. 4-piece slotting cutters, D280; 21-90mm; LM for 4-way vertical milling machine
Wall thickness +/- 28-100mm
Dimensions: ?280/30
Adjustability, width: 21.0 - 90mm
Version: Z=3; V=3, LM / HM-WEPLA HM-WEPLA 15x15x2.5
1 pc. Combined face groove & dovetail milling cutter
3-axis controlled milling unit with a combination of face groove and dovetail milling tools.
The special sliding table function allows face grooves or dovetail tenons or grooves to be created on both ends of the component.
The rotatable R-axis allows dovetail grooves to be milled for the partition wall connection on the top and bottom sides.
Face groove cutter? x width max. 240 x 30 mm
Face groove milling depth variable, max. 40 mm
Dovetail width variable
Motor power 4.0 kW
Speed ​​INVERTER controlled, max. 4,500 rpm
Feed DT.Y axis SERVODRIVE, continuously adjustable via software. Height adjustment DT.Z axis SERVODRIVE
Rotation adjustment DT.R axis SERVODRIVE
Min. plank thickness for longitudinal connection 80 mm
Operation automatic via IPC control
Workpiece clamping device vertical pneumatic
Mounted on the BL machine stand. With electrical engineering, control integration, and pneumatics.
With sliding table function for separating adjacent component ends (Multilog). Ready for operation, but without cutter!
1 x 20 mm face groove and 40 mm dovetail cutter
Cutter combination for face groove and dovetail (combination cutter)
Face groove D240 x 20 mm: Dimensions: ?240/35H7
Adjustability, width: 20 mm
Version: LM / HM-WEPLA 15 x 15 x 2.5 Z=3 V=3
Dovetail cutter D=40 mm: Dimensions: ?40
Adjustability, width: 15 mm
Version: Z=2; Steel / HM-WEPLA
1 x BGD SERVO horizontal drilling rig with drill guide
For drilling holes through the log to the B
