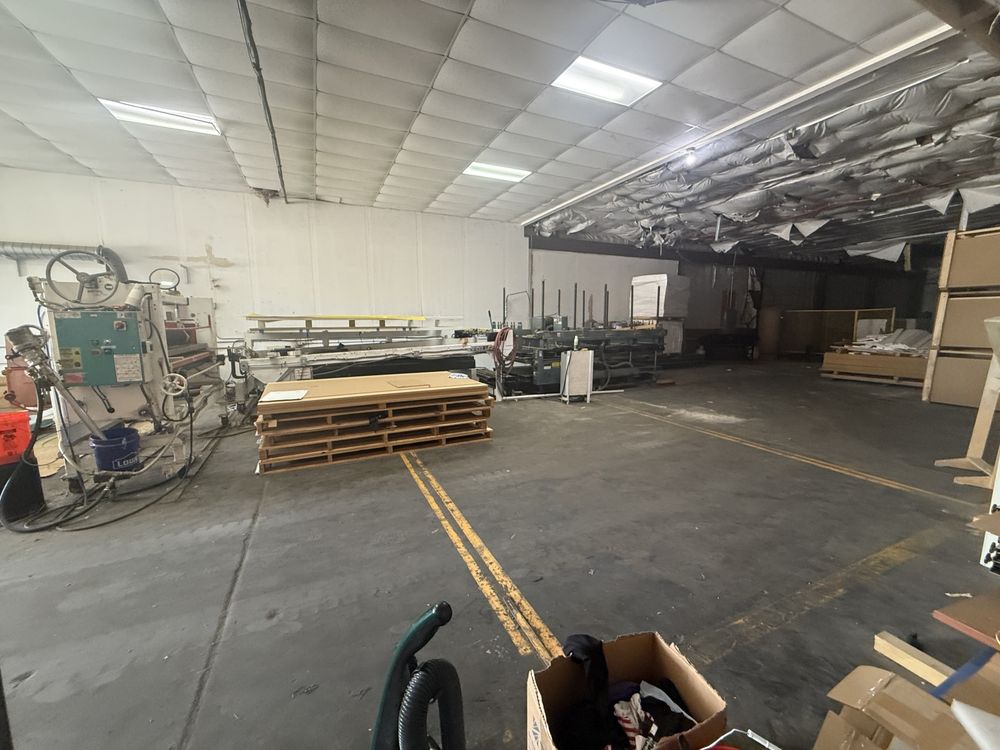

Black Brothers Complete Laminating Press Line

Consisting of:
Pneumatic Panel Feeder/Scissors Lift/Panel Cleaner/Glue Spreader/Index Tables w/Laminate Rack/Press
Panel Capacity up to 5' X 12'
Pass Line Height is 44"
Line Begins with Black Brothers Pneumatic Panel Feeder to Feed Individual Panels Into Panel Cleaner
The Pusher has a 24" Stroke with 4' of Adjustment to Feed Panels 8, 10, and 12' Long and Up To 250 lbs.
Dual Limit Switch Arrangement Controls Scissors Lift to Feed One Panel at a Time
Scissors Lift 48" x 120" with 6,000 lb Capacity
Midwest Automation Model PC160 Top & Bottom Panel Cleaner 63" Width Capacity
Black Brothers Model 775 Top & Bottom Glue Spreader 68" Width Capacity
Upper Elevator 0 to 4-1/2" Opening
Glue Spreader Mounted on Caster with Track for Cleaning
Coating Rolls are 7-3/4" Diameter 60 Durometer Grooved 16 TPI
Doctor Rolls are 7" Diameter 100 Durometer Ground Smooth
Feed Motor is 1.5HP Single Speed with 3" Reverse Lockout 88 FPM
Black Brothers Laminate Indexing Station
This Station Receives Stock on Center Line from Glue Spreader, Locate on Scissors Lift, and Provide Ready Access to Face and Backer Sheet to be Laid up with Glued Panel Stock.
Index Station will Handle Panel Sizes from 4' x 8' up to 5' x 12', 1/2" and Thicker
Foot pedal or indexing photoeye lower lift incrementally as each sheet is added; gravity roller conveyors on top of lift allow moving completed stack towards Cold Press infeed station
Black Brothers Pod Press 5' X 12' Capacity
Platen Size: 62" X 147"
End Loading Press
Adjustable Opeing Press with Motorized Adjustment up to 45"
Pneumatic Pods with 5-1/2" Stroke, 50 PSI Specific Pressure
Two(2) Track Spring loaded Feed Chain in Bottom Platen for Loading and Unloading
