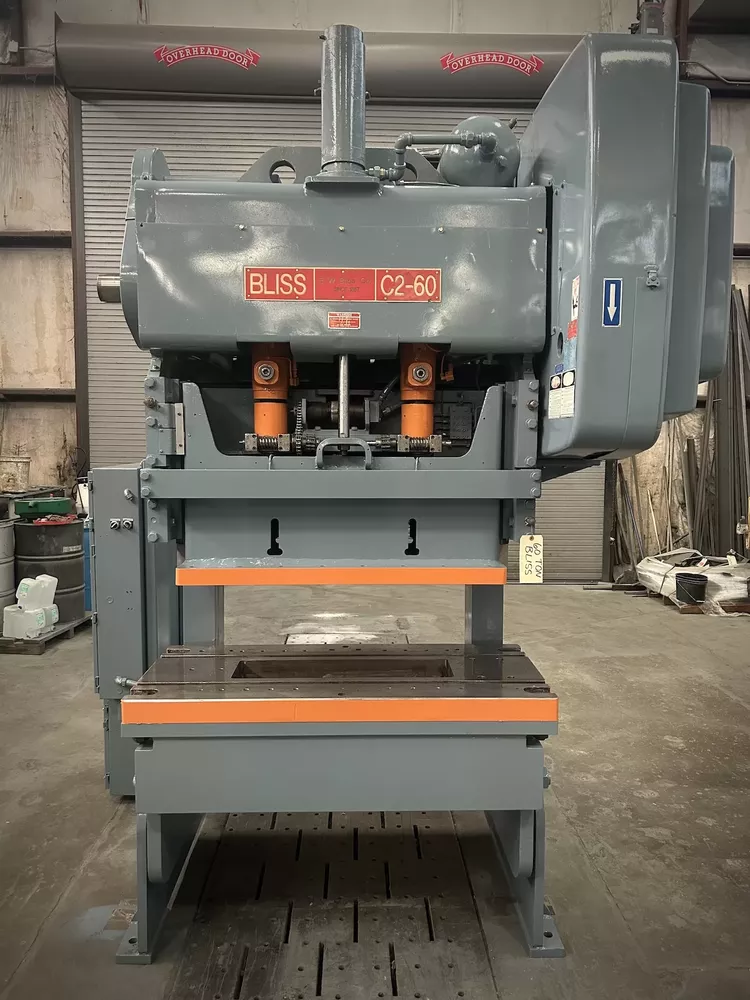

Bliss C2-60 Press 60 TON

Bliss C2-60 Press
Year: 1985

CAPACITY 60 TON
STROKE 3″
MAX SHUT HEIGHT TO BED 17″ SDAU
BED AREA 54″ X 24″ (RL X FB)
SPEED 100
SLIDE ADJUSTMENT 2.5″ AIR MOTORIZED
SLIDE AREA 42″ X 18″ (RL X FB)

BOLSTER PLATE 54″ X 24″ (RL X FB) X 3″ THICK T-SLOTTED PLATE
DISTANCE BETWEEN UPRIGHTS 40″
DISTANCE FLOOR TO BED 35″

CLUTCH BLISS AIR CLUTCH / BRAKE COMBINATION
PRESS CONTROLS LINK 501 PRESS CONTROLLER
ELECTRIC MOTOR 5 HP 870 RPM 240/480V-3-60 MOTOR
APPROX. DIMENSIONS 118″ h x 96″ rl (including link control) x 84″ fb
APPROX. WEIGHT 16,000 LBS

Equipped With
DUAL AIR COUNTERBALANCES, INCLINABLE, FLOOR STANDING
