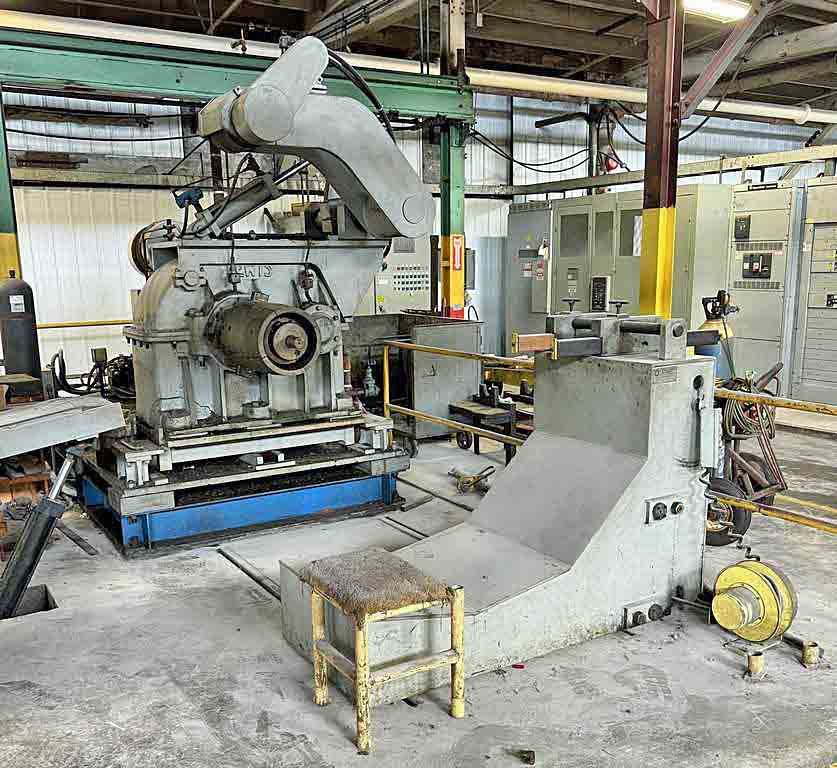

Bliss United 4 HI 1 Stand Backup Roll Diameter: 18"

Work Roll Diameter: 5.140" - 4.600"
Width Range: 1.5" - 12"
Entry Gauge Thickness: 0.010" - 0.215"
Exit Gauge Thickness: 0.010" - 0.205"
Entry ID: 16"/20"
Exit ID: 20"
Entry and Exit OD: 72"
Mill Direction: Right to Left
Entry L-Type Coil Car with self-contained hydraulic power unit
Mandrel Uncoiler: Lewis hydraulic expansion
100 HP DC motor drive
Overarm hold down roll
Slide base
Entry Peeler Table with hydraulic lift and extend
Entry Pinch Rolls powered
Edging Roll Assembly: 2 sets of rolls
Manual side pressure adjustment
Hydraulic motor width adjustment
4 HI Mill Stand: 5" x 18" x 14"
Morgoil backup bearings
Non-reversing
Motorized screwdowns
No coolant
200 HP DC main motor drive
Deflector Roll
Mandrel Recoiler with hydraulic pushoff
200 HP DC main drive motor
Exit L-Type Coil Car with self-contained hydraulic power unit
Overarm hold down roll
Exit (1) Arm Turnstile: C-Hook type arm
Mill Hydraulics
I2S Controls and Electrics
Roll Count: 18 work rolls, 4 back up rolls
Chocks: 4 sets work roll, 1 set back up
Installed
