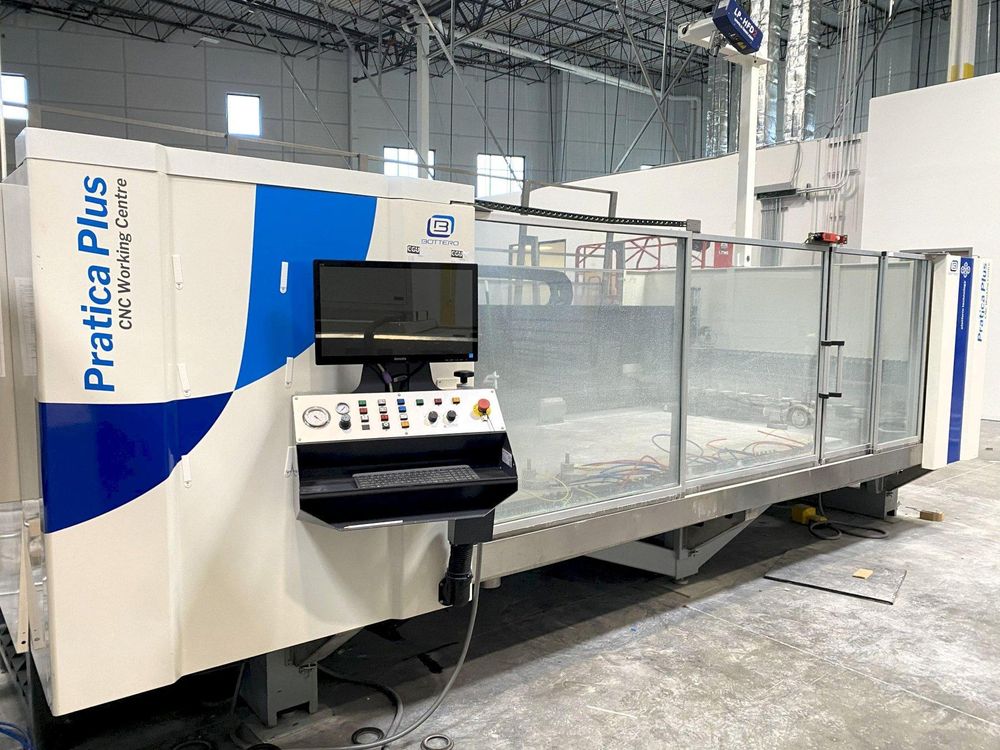

Bottero PRACTICA PLUS 3 Axis

axis travel X/Y/Z: 3400 / 1720 / 300 mm
rapid travel speed X/Y: 50 m/min
rapid travel speed Z: 15 m/min
control: Bottero CNC
CNC control: yes
tool change time: 10,000 RPM
spindle power: 12.33 HP
internal spindle pressurization: 2 bar
working air pressure: 6.5 bar
air consumption: 350 Nlt/min
working water pressure: 3 bar
circulating water pump flow: 113.5 gal/min
circulating water tank volume: 430 gal
network water consumption: 3.96 gal/min
electrical power requirement: 25 KVA
average lubricant consumption: 0.00079 gal/h
tool-holder loader capacity: 13+13
number of axes: 3
worktable dimensions X/Y: 126.96" x 63.77"
maximum worktable dimensions with tools X/Y: 129.92" x 63.77"
dimensions LxWxH: 19 ft x 7.5 ft x 6.5 ft
weight: 10,000 lbs

CNC edger
1x fixed tool storage
automatic lubrication system
water pump and water tank
laser projector for positioning stops and suction cups
laser pre-setter
shape scanner
ISO 40 kit for circular saw (flat)
ISO 40 kit for cutting 45° (1 aggregate)
ISO 40 kit for beveling 3-5-7-10°
ISO 40 kit for horizontal grinding
ISO 40 kit for lower and upper drilling
ISO 40 aggregate for writing on the edge
ISO 40 kit for shaped engraving
sheet locking system activated by pedal + remote control box
touch screen monitor
