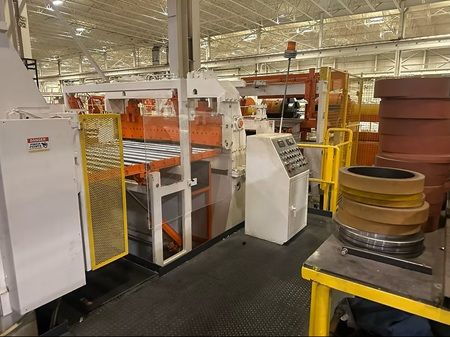

Bradbury, Strilich STRILICH MULTI-BLANKING LINE Line speed: 250 FPM

Material thickness: 0.015" – 0.125"
Coil width: 12" – 74"
Coil weight: 75000 lb
Coil OD: 72"
Coil ID: 20" – 24"
Blank length: 12" – 180"
Single blank width: 12" – 74"
Multi-blank width: 8" – 36"
Yield strength capacity: 20000 – 80000 PSI
Leveler: 17 roll, 7 flight, 4 high hydraulic
Slitter heads: 2 units
Slitter arbor diameter: 8"
Shear type: High speed mechanical
Roll feeder: Full width, 4 high
Stacker: Air float with mechanical dividers
Pack height: 30"
Pack weight: 20000 lb
Uncoiler drive: 100 hp DC
Leveler drive: 200 hp DC
Slitter drive: 75 hp DC
Scrap baller drive: AC motor
Roll feeder drive: AC induction motor
Shear drive: 15 hp AC motor
Line direction: Right to left
Materials processed: CRS, HRPO, galvanized, pre-painted

Coil storage saddles
Traveling coil loading car
Dual expanding mandrel uncoiler
Hold down roll
Peeler blade
Automatic edge guide system
Entry pinch rolls
Strip centering guides
Entry crop shear
Threading table
Scrap cart
Leveler entry pinch rolls
Strip inspection tables
Slitter base
Slitter head injector system
Slitter head storage tray
Slitter and separator tooling
Edge trim scrap baller system
Looping pit quadrant tables
Belt style threading table
Strip separator spindle
Adjustable bridle roll assembly
High speed shear
Belt conveyor system
Blank hold-down system
Stacker feed rolls
Air float stacker
Adjustable strip dividers
Powered skid injector
Elevating stacker lift table
Package runout with scale
Operator control stations
AC controls
Variable speed drives
Closed loop hydraulic system
