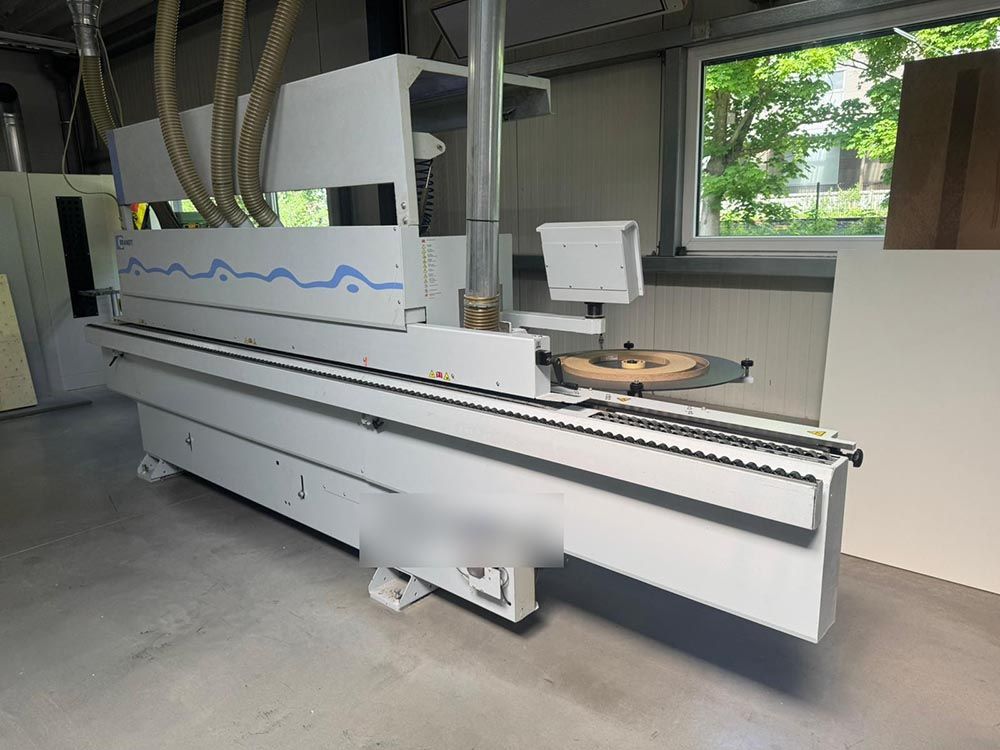

Brandt HIGHFLEX 1220

Edge Banding Machines
Equipment:
- Extended infeed guide (by 300 mm)
- Pre-milling unit 2 x 2.2 kW 200 Hz
- Gluing unit A6:
- Workpiece preheating (heating shoe)
- Quick-change application unit
- Automatic edge magazine with automatic edge feed
- Pressure zone with pneumatic 2-point adjustment
- Trimming unit bevel/straight 2 x 0.18 kW
- Pneumatic adjustment of trimming bevel/straight
- Trimming unit 2 x 0.27 kW counter-rotating
- Pneumatic trimming bevel/radius/straight
- Multi-roller tracing for fine trimming
- Profile trimming unit 1 x 0.35 kW WD 40
- Scraper with quick-change heads
- Pneumatic Scraper Adjustment
- Special tracking for profile scraper
- Glue joint scraper
- Easy Control EC 10+ electronic control

Technical Specifications:
- Feed rate ¦ 11 m/min
- Maximum feed rate with profile milling ¦ 11 m/min
- Working height ¦ 950 mm
- Pneumatic connection ¦ min. 6 bar
- Total length ¦ approx. 4,153 mm
- Minimum workpiece width:
- For workpiece thickness 8-22 mm ¦ 70 mm*
- For workpiece thickness 23-40 mm ¦ 120 mm*
- For workpiece thickness 41-60 mm ¦ 150 mm*
*Depending on workpiece length
- Workpiece overhang ¦ 38 mm
- Workpiece thickness ¦ 8-60 mm (with jointing and/or profile milling max. 40 mm)
- Edge height Max. = workpiece height + 5 mm
- Edge material roll 0.4 - 3 mm
- Edge cross-section max.
- For PVC 135 mm²
- For veneer 100 mm²
- Roll diameter max. 830 mm
- Edge material strip 0.4 - 6 mm
- Edge cross-section max.
- For strip 165 mm²
