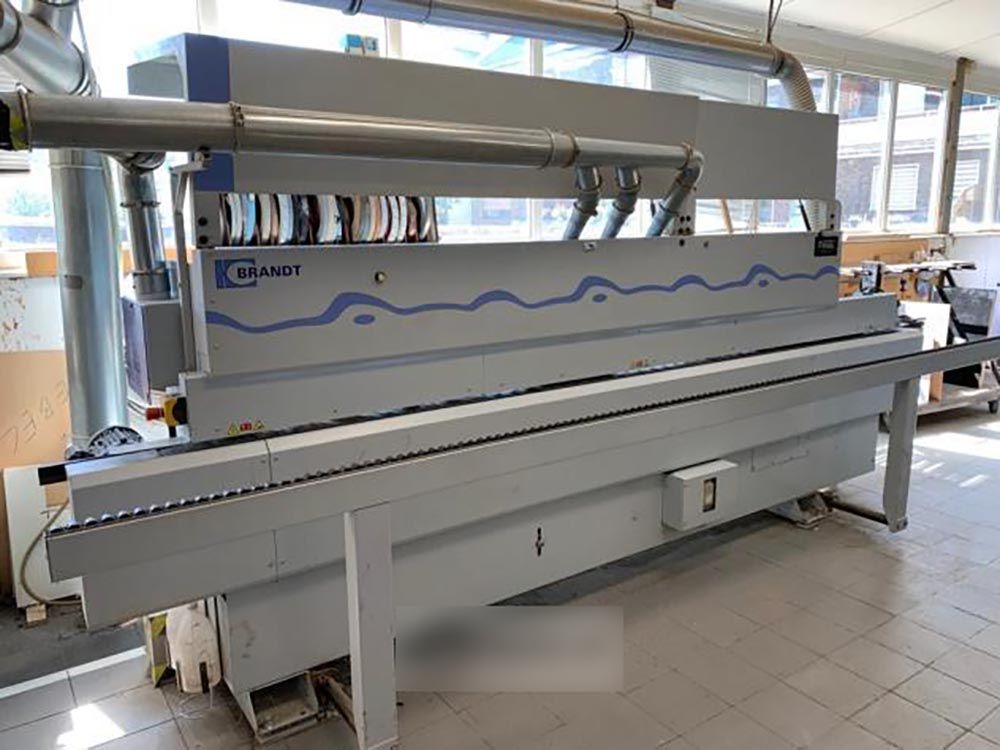

Brandt OPTIMAT KDF430C

Edge Banding Machines
Features:
- Quick-change gluing unit for hot melt adhesive
- Automatic edge magazine with roller plate
- Pressure zone with pneumatically actuated pressure roller and 2 free-running pressure rollers
- Power Control PC 20+ control system
- Adjustable infeed guide
- 2 x 2.2 kW jointing unit
- Pneumatic adjustment of trimming, scraper, program adjustment of side contact rollers, and pneumatic adjustment. 2-point adjustment of vertical sensing rollers
- Trimming unit 2 x 0.18 kW
- Milling unit 2 x 0.55 kW
- Shaped milling unit 1 x 0.35 kW
- Scraper unit for PVC edges
- Surface scraper for glue joints
- Workpiece cleaning agent specification
- Buffing unit

Technical specifications :
Edge thickness 0.4 - 8 mm
Roller cutting max. 3 x 45 mm
or 0.8 x 65 mm
Workpiece thickness 8 - 60 mm
Maximum feed rate approx. 11 m/min.
Electrical system 400 V - 3 Ph. - 50 Hz
Connected load approx. 10.5 kW
Pneumatic connection 6 bar
Total length 4,780 mm
