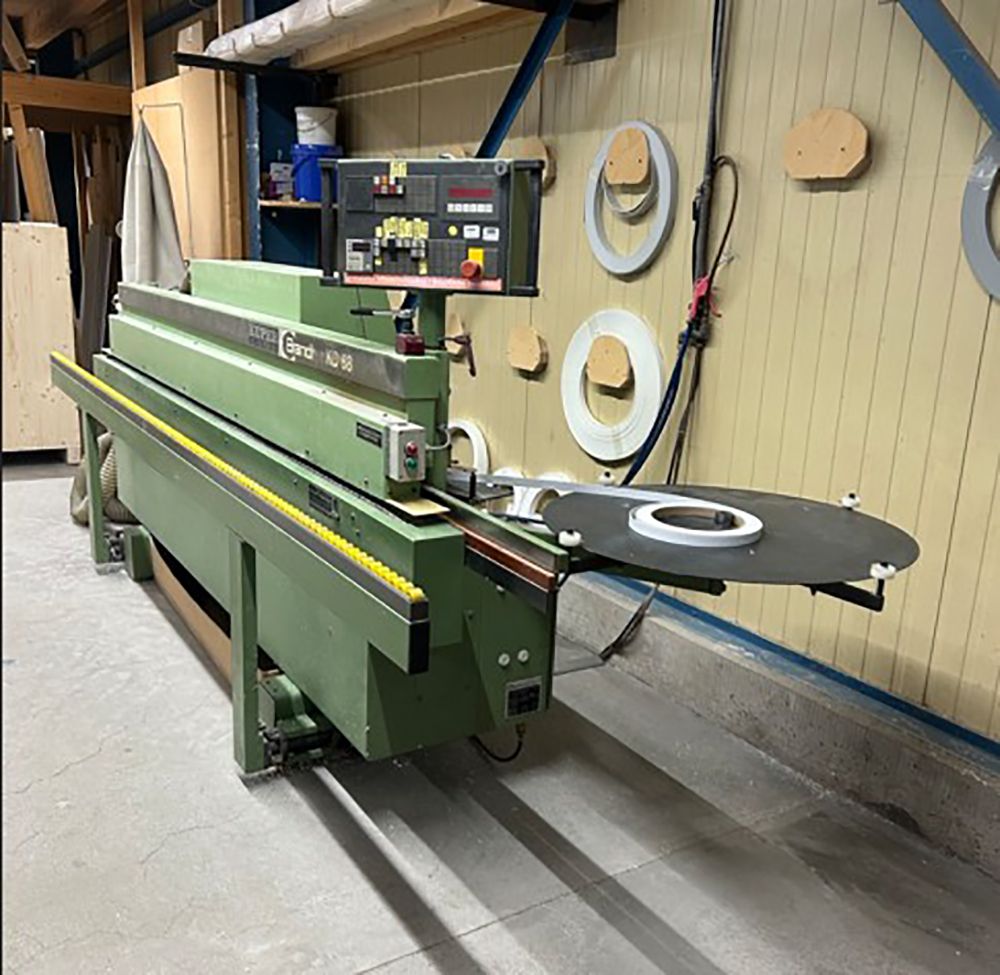

Brandt KD 68

Used machine
Edge banding machine
Condition: as is/was in operation until recently

Features and technical data:
Glue dispenser with glue pot and application roller
Printing unit
Trim unit with linear guides
Flush trimming unit with horizontal and vertical probing with 200 Hz motors
swivelable 0–30°
with radius scraper
with buffing unit
Edge thickness 0.4–5 mm
Roller cutting 0.8 x 60 mm or 3 x 30 mm
Minimum workpiece width 55 mm
Minimum workpiece length 160 mm
Workpiece thickness 10–55 mm
Feed rate 11 m/min
Pneumatic connection 6 bar
Dimensions 3855 x 1000 x 1610 mm
Extraction port 100 mm
Weight 1000 kg
