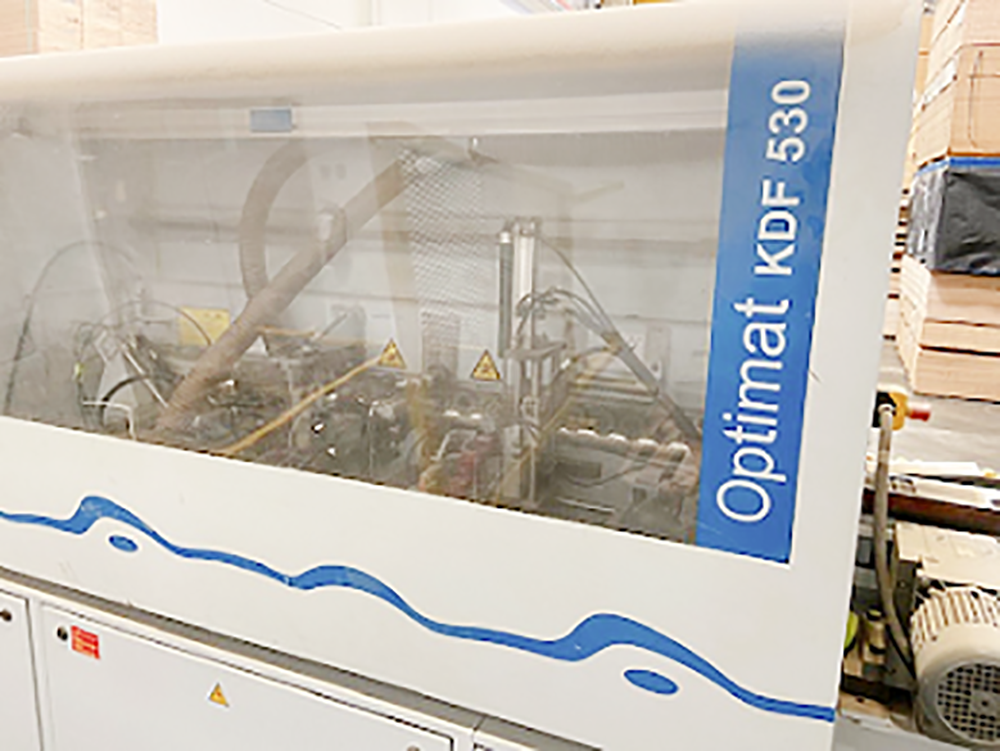

Brandt KDF 530C

Edgebander w/ Premil and Corner Round
"7000 hours , runs wonderful."
PC-16 program controller with color matrix
8 Mb RAM and manual push button controls or program control operation digital height indicator
dual feed speed of 36 or 46 F.P.M. (36 F.P.M. when contour trimming) integrated line control system
universal automatic magazine for strip and coil feeding with large (800mm diameter) coil table
adjustable infeed fence and equipped with a joint trimming unit with two (2) 3 H.P. diamond cutter heads
hot melt granulate glue application system; reversible rotation of glue application roller (retractable glue roller)
strengthened pre-cutter for cutting PVC (max. 3 x 45mm) from the coil
double motor end trimming unit with straight and chamfer capability up to 15 degrees and program controlled indexing from straight to bevel
fine trimming unit with Servo Motor Program controlled indexing
contour trimming unit; with a scraping unit with program controlled pneumatic indexing buffing unit
frequency changer for all trimming motors and electronic motor brakes
electrical controls wired for AC 3/60/460 volt operation with transformer
safety and sound enclosure and having an edge band thickness capacity of 0.016" to 5/16"
edge band height capacity of 1/2" to 2-3/16"
panel thickness capacity of 5/16" to 2"
