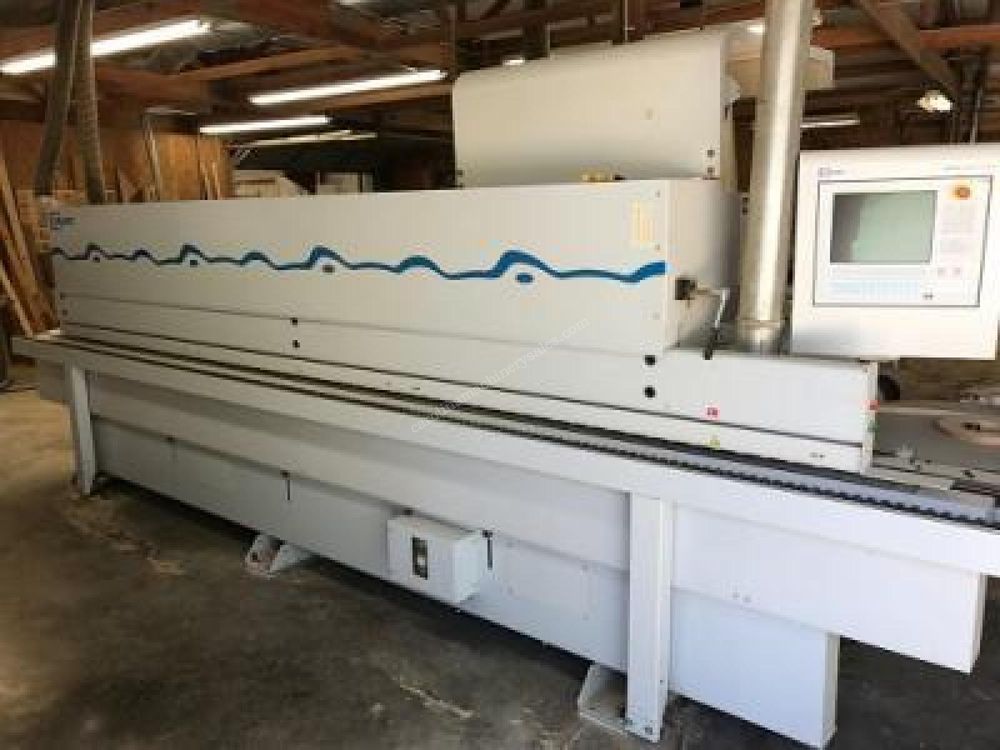

Brandt KDF 650 C

Edgebander
Low hours, not currently running at this time.

Machine Description:
Voltage: 230/460V, 60Hz, 3Ph
Although the machine is capable of running thicker panels, the pre-mill cutter heads on this machine are only 42 mm work height.
Universal automatic magazine for strip and coil feeding.
Large coil table.
Quick melt granulate glue application system with 12-minute heat up time.
Quick change glue tank.
Strengthened pre-cutter for cutting PVC.
Double motor end trim unit with straight and chamfer capability. Chamfer up to 15 degrees.
Program controlled indexing from straight to bevel end trimming.
Fine trimming with servo motor program controlled indexing.
Contour trimming unit.
Scraping unit for rigid PVC edges. Program controlled indexing.
Buffing Unit.
Electronic frequency changer for all trimming motors.
Joint trimming unit: Pre-trim of the piece, 2-motors, vertical spindle adjustment, horizontal positioning.
End trim station.
Fine trim unit.
Contour trim unit.
Scraping unit with knives.
Top and Bottom buffing unit.
Premill.
Corner Round.

Edgeband thickness: 0.4-12 mm
Edgeband height: 12-60 mm
Panel Length min: 160 mm
Panel width min: 65 mm
Panel thickness: 8 - 55 mm
Feed Speed: 2-Speeds 16 m/min and 11 m/min
Feed motor: 3 HP
Joint trim unit: 3 HP
End trim unit: (2) 1/2 HP
Fine trim unit: 3/4 HP
Profile trim unit: (2) 1/2 HP
Machine length: 19'
Machine width: 6'
Approx wieight: 5,000 lbs
