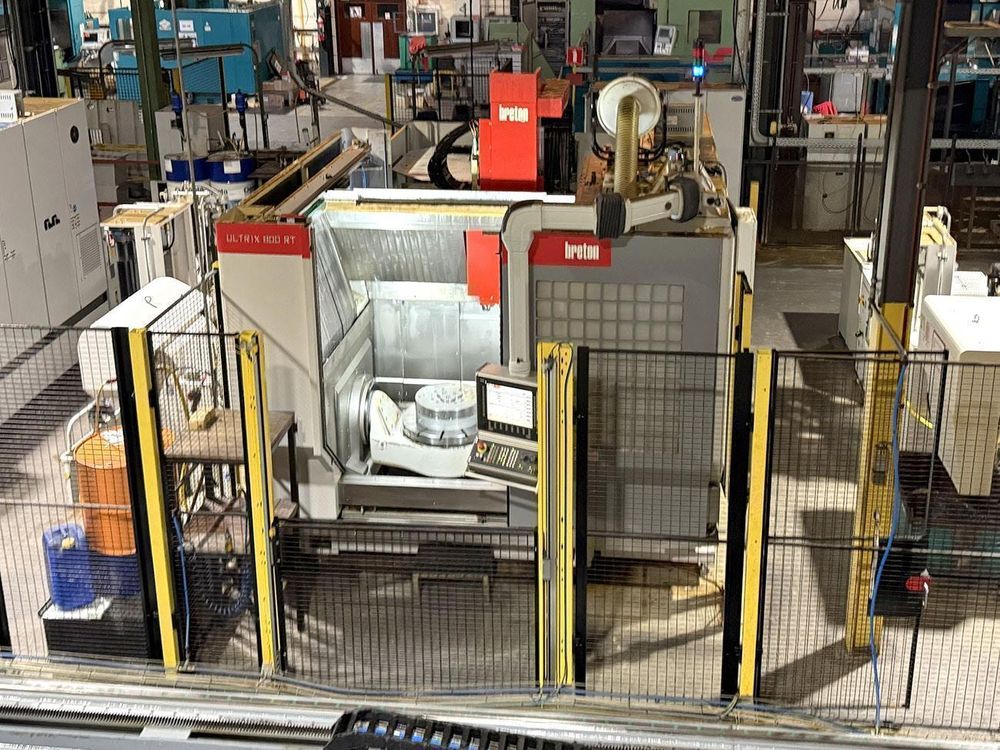

Breton ULTRIX 5 Axis

800 X:800 - Y:900 - Z:600 mm CNC
X-axis travel 800 mm
Y-axis travel 900 mm
Z-axis travel 600 mm
A-axis -30° / 110°
C-axis continuous
Control Siemens 840D Solution Line
Chuck diameter 700 mm
Maximum turning diameter 1100 mm
Table swivel range 1100 mm
Maximum workpiece weight 700 kg
Spindle power (table) 40 / 30 kW
Maximum table torque 1500 Nm
Maximum table speed 1000 rpm
Hydraulic clamping on table
Tool taper for turning KM63
Tool taper for milling HSK-E40
Spindle power (milling) 55 / 40 kW
Maximum spindle torque 22 Nm
Spindle speed 40000 rpm
Turret yes
Tool changer 150 positions
Tool positions for turning 24
Tool positions for milling/grinding/drilling 126
Coolant pump yes
Machine length 4655 mm
Machine width 5890 mm
Machine height 3415 mm
Machine weight 17 ton

High-speed spindle 40000 rpm
Table 700 mm with hydraulic clamping
150-position tool changer
Chip conveyor belt
Cooling system with recovery
Coolant temperature control
High-pressure cooling 40–70 bar through spindle
Smoke extraction system
Chip collection box
Laser and mechanical tool presetting and integrity probe
Renishaw probe
