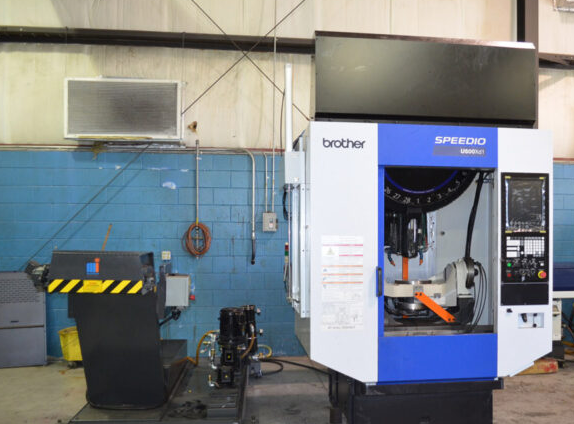

Brother SPEEDIO U500Xd1 5 AXIS

X-axis travel 19.7 in
Y-axis travel 15.7 in
Z-axis travel 11.8 in
Distance table to spindle nose 5.7–17.5 in
A-axis travel 120° to -30°
C-axis travel 360°
Control CNC-D00
Table work area size 10.2 in
Table load capacity 220 lb
Spindle speed 1–16,000 RPM
Tapping speed max 6,000 RPM
Spindle taper 7/24 No.30
Rapid traverse X/Y/Z 1,969 / 1,969 / 2,205 IPM
Cutting feedrate 0.04–1,181 IPM
Tool shank type MAS-BT30
Tool magazine capacity 28

Tilting rotary table
Mist collector
Chip conveyor
Tool presetter system
High-speed spindle 16,000 RPM
