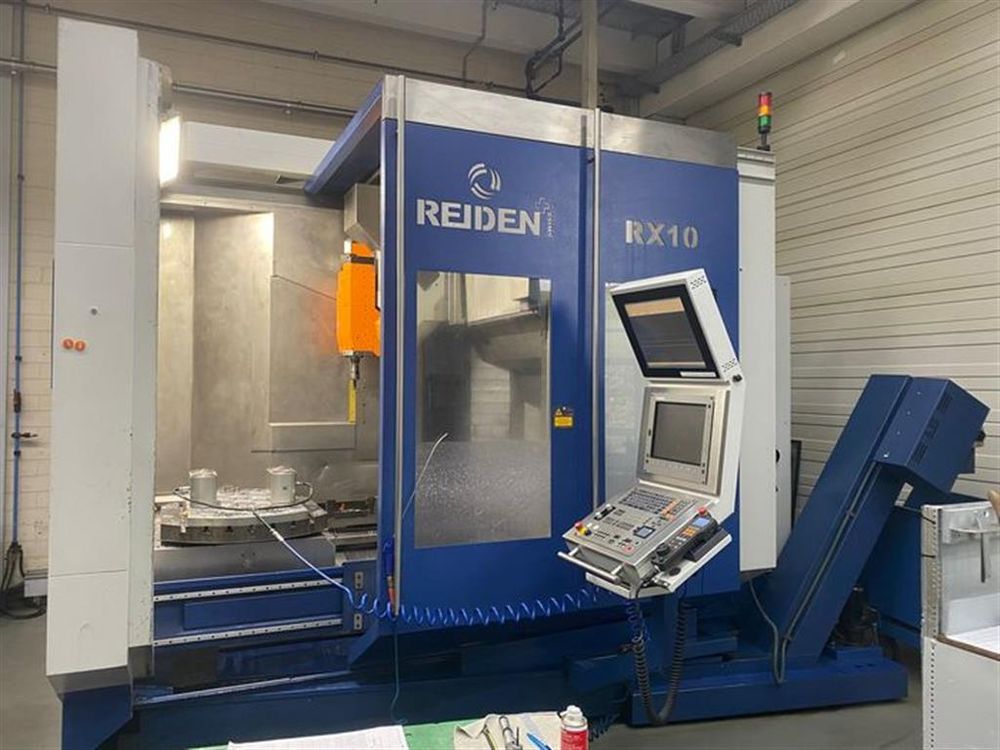

Reiden RX 10 5 Axis

X-Axis Travel: 1000 mm
Y-Axis Travel: 1100 mm
Z-Axis Travel: 810 mm
CNC Control: HEIDENHAIN iTNC 530
Spindle Speed: 18,000 rpm
Spindle Taper: HSK 63
Table Size: 1000 x 800 mm
Max Swing Diameter: 1350 mm
Max Table Load: 1000 kg
Tool Magazine Capacity: 273 Positions
Rapid Traverse: 60 m/min
Total Power Requirement: 86 kW
Machine Weight: 18 t
Machine Footprint: 4.3 x 6 x 3.4 m
5-Axis Universal Machining Center
NC Rotary Table and B-Axis (Milling Head)
DDT Spindle for High Torque: HT max 3000 rpm, 291/226 Nm
DDT Spindle for High Speed: HS max 18,000 rpm, 83/63 Nm
Oil Mist Extraction
Coolant Through Spindle: 50 bar
Chip Conveyor with Band Filter
Electronic Handwheel
DCM Collision Monitoring
Machine Operating Hours: 45,000 h
HT Spindle Operating Hours: 2,000 h
HS Spindle Operating Hours: 12,000 h
New Motor Spindle Installed: 09/2025
