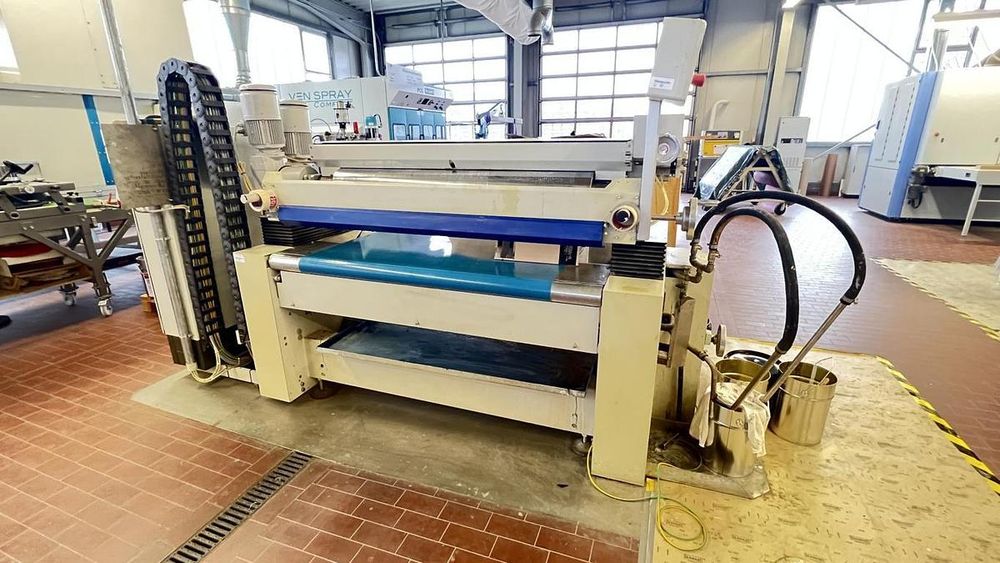

Burkle DRUMA SDLR 1300

Printing machine for non-synchronized printing of wood grains or other designs from above
on flat workpieces in one-color printing, suitable for aqueous and UV inks.

- Operating side: right
- Workpiece width: 1.250mm
- Min. workpiece length: 350mm (300mm)
- Workpiece height: ~ 3-100mm
- Suitable for printing ink, water-soluble and UV inks

Transport system:
- Conveyor belt width: 1,230mm
- Max. Production speed: 10m/min.
- Feed speed: 8-25m/min.
- Rubber coating 60Shore (6By1)
- Diameter 186mm

Application unit:
- Rubber coating 50Shore (5by1)
- Diameter: 238mm
- Engraving cylinder, diameter: 174mm
- Separate, infinitely variable FU direct drive for engraving cylinder and application roller.

Engraving roller:
- Diameter
- circumferential speed

Machine dimensions:
- Installation length: 800mm
- Working height approx. 900mm +-20mm
- Width: ~ 2.700mm
- Electrical connected load: 5kW
- Weight: approx. 1.400kg
